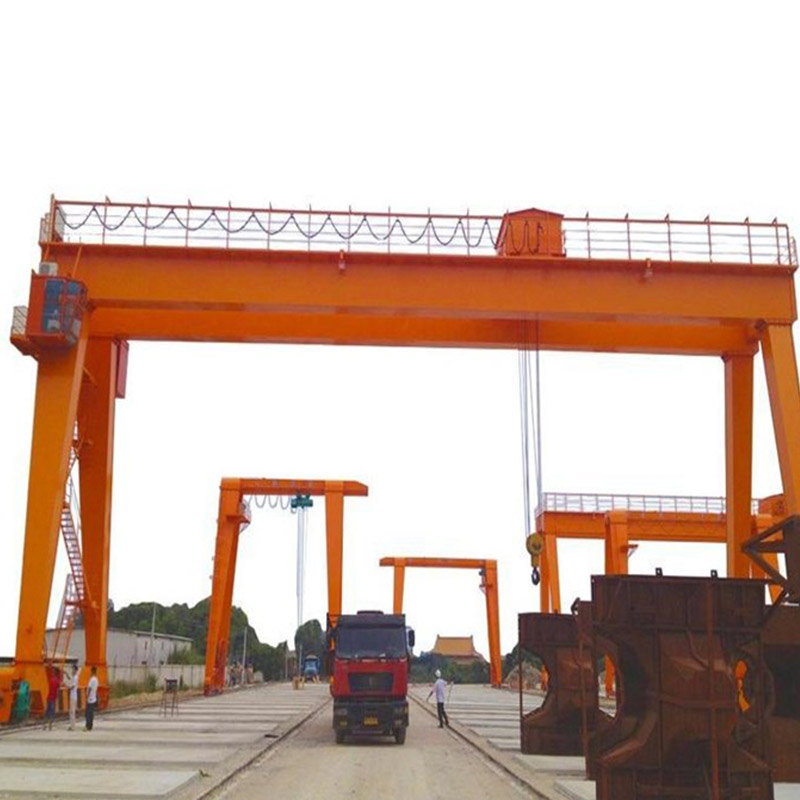

It is a medium and heavy size crane which travels in track.
Its proper lifting weight is 5 to 75 tons and proper span is 18 to 35 meters.
Its proper working temperature is -20–+40 centigrade and with three working class: A5, A6, A7.
Gantry crane has two control methods namely remote control and cabin control, or two control models together.
Power is supplied by cable or slide wire.
The main beam, legs and travelling beams are made by steel plates, it is very strong and has small body, it is suitable for ocean transport.
According to international standards,lifting tonnage of MG is divided into:5 tonnes,10 tonnes,16 tonnes(16/3.2),20 tonnes(20/5),32 tonnes(32/5),50 tonnes(50/10)
We can also customize lifting tonnage according to customer requirements.
