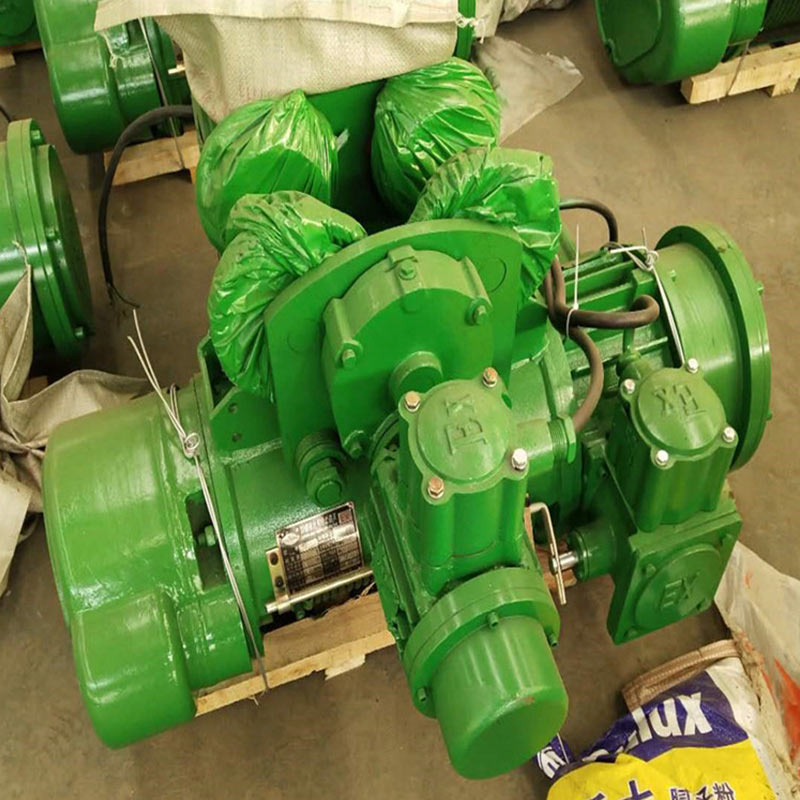

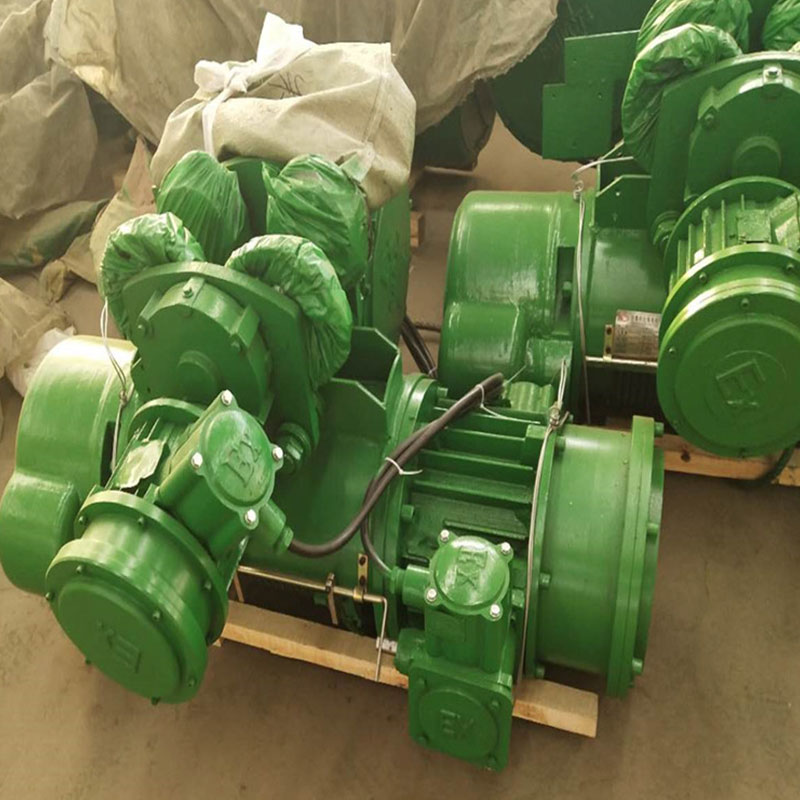

The BCD model electric hoist is explosion proof hoist, it is developed from CD model electric hoist, the motors and electrical organs are explosion proof protection, it is used in the environment that mixed with inflammable gas/oil, the duty class is intermediate-M3. This hoist is applicable to workshop where the Explosion conduction is lower than IIB or IIC, the burning point of inflammable gas is not higher than T4.
The explosion-proof wire rope electric hoist has explosion-proof function and high working level; it is safer, more reliable, and has a lower failure rate; it can compete with advanced products and is world-renowned. The explosion-proof wire rope electric hoist provides two speeds: normal speed and low speed. At a low speed, it can do precise loading and unloading, mounding of sand box, maintenance of machine tools, etc. It is widely used in factories, mines, harbours, warehouse, cargo storage areas and shops, essential in raising working efficiency and improving working conditions. It can be used on the I beam track or single beam crane and it can be installed on the fixed support as a use of weight lifting.
1. Reducer: adopt third-class dead axel helical gear transmission structure gear and geaaxel are made of heat treated alloy steel
2. Button Switch: easy to operate, safey for operator, both remote control and pendant control are available.
3. Motor: three-phase asynchronous induction motor, durable and powerful. Insulation grade is F.
4. Protection grade: IP54, work grade: M3
5. Over load limit is available. Hook is widen and thicken
6. Power-Off protection, Emergency stop system.
7. Low noise, soft starting and stopping
8. Safe and reliable operation
9. One year warranty for whole machines
10. Providing free quick-wear part
11. Low charge for continue maintenance when warranty is expired
12. Exclusive engineer support at any time.
13. Highly professional training to end-users.
| Model Number | BCD /BMD Explosion-proof Electric hoist |
| Capacity | 0.5~55t |
| Lifting Height | 6m, 9m, 12m, 18m, 24m, 30m |
| Lifting Speed | 3(3/0.3)m/min, 2(2/0.2)m/min, 3.5(3.5/0.35)m/min |
| Traverse Speed | 20m/min, 30m/min or double speed |
| Industrial Voltage | 380V,50Hz,3Phase or as your demands |
| Control Methods | Pendant push button or remote controller |
| Working Temperature | -25°C ~ +42°C |
| Working Class | M3 |
| Color Of Electric Hoist | As your demands |
| Electrical System | Schneider brand contactor |
| Motor | China brand motor from Xinxiang |
