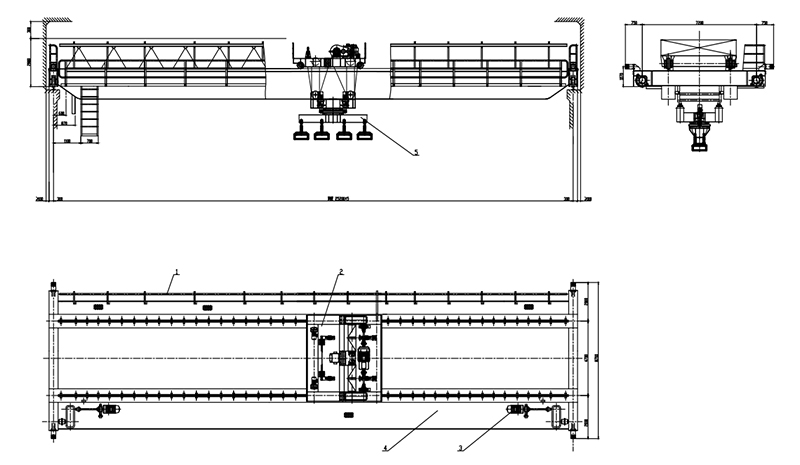

The crane adopts hanging beams to hoist long billets, plates, bars, coils and other items, and is equipped with electromagnetic suckers or clamps or special group hooks for hoisting. It is composed of room and electrical control system, and is equipped with a power failure magnetic protection system. The hoisting mechanism mostly adopts the arrangement of single motor, double reducer and double drum, in the form of double lifting points. The arrangement of the hanging beam is parallel to the main beam
QL Double beam under rotation or revolving hanging beam magnetic eot crane consists of Main beam, end beam,Lifting trolley, crane long traveling mechanism, cabin and electric control system.

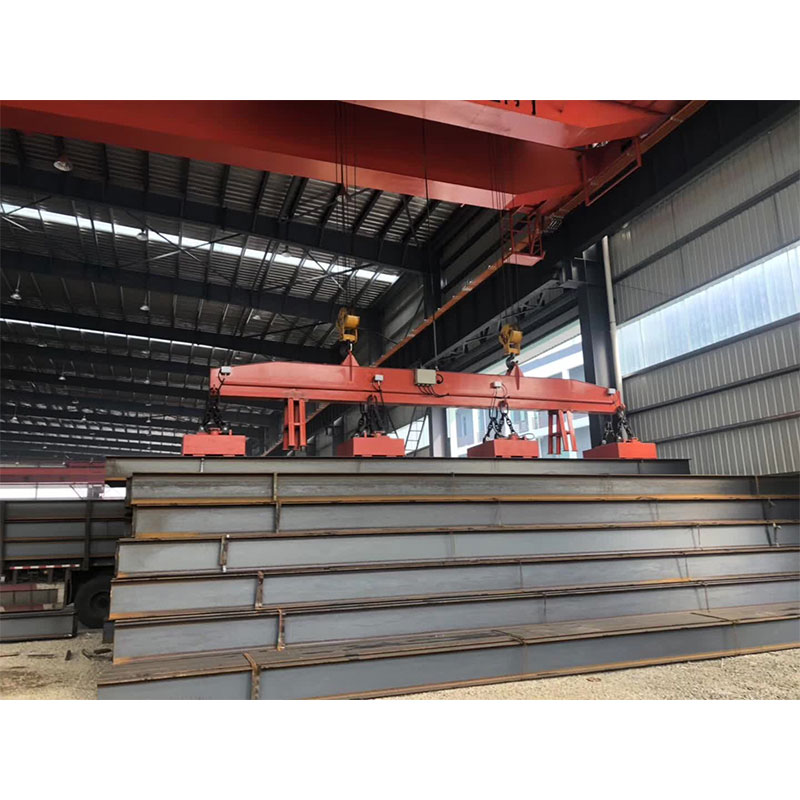

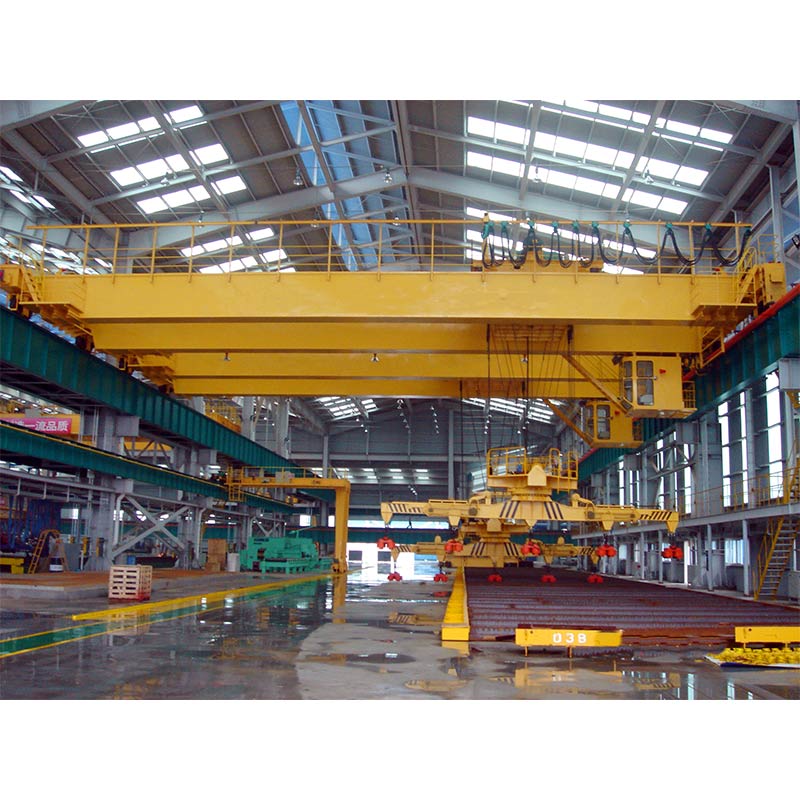

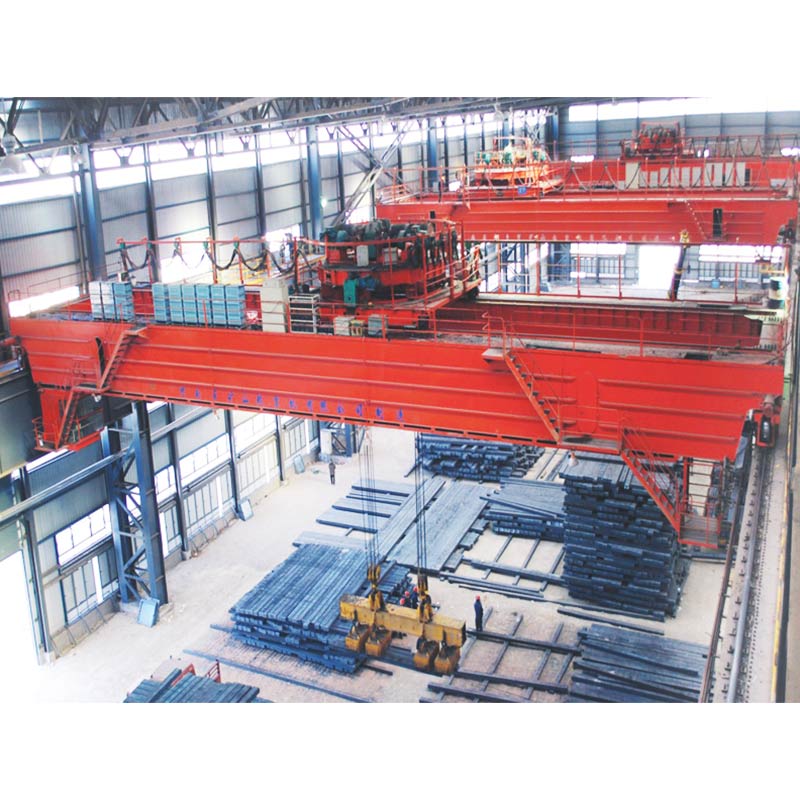

QL Double beam under rotation or revolving hanging beam magnetic eot crane is one kind of heavy duty lifting equipment, it is widely used in steel mill plant indoor workshop to to lift long material,for example, steel billet,steel rebar bundles,steel billet bundles,etc.
QL Double beam under rotation or revolving hanging beam magnetic eot crane has reasonable and robust structure,light dead weight,high bearing capacity,low cost maintenance, superior performance,long service life.

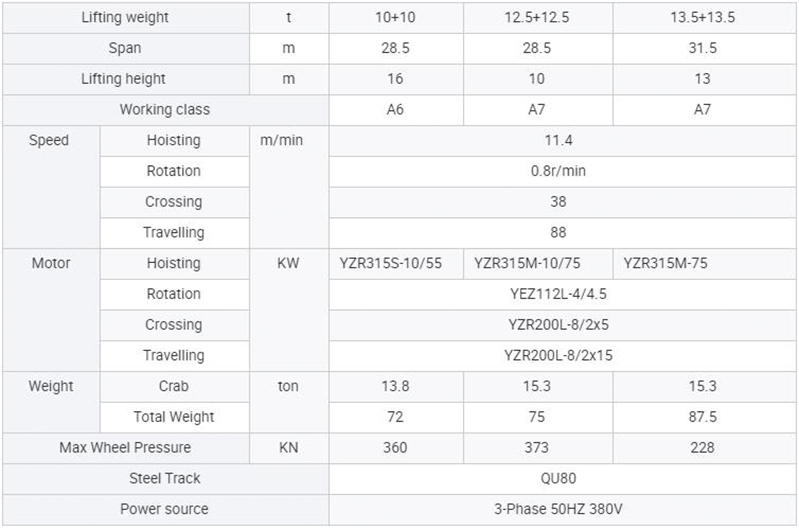

Normal capacity are 5+5t,10+10t,16+16t, the span is 10.5m-31.5m, lifting height 6-30m, working class is A6,A7.
Control model: cabin control,remote control
Lifting overload protection device;
Polyurethane buffer;
Crane travel limit switch;
Decompression protection;
Emergency shutdown device;
Current overload protector.
1. Lightly and ingeniously structured
2. Strong magnetic attraction power

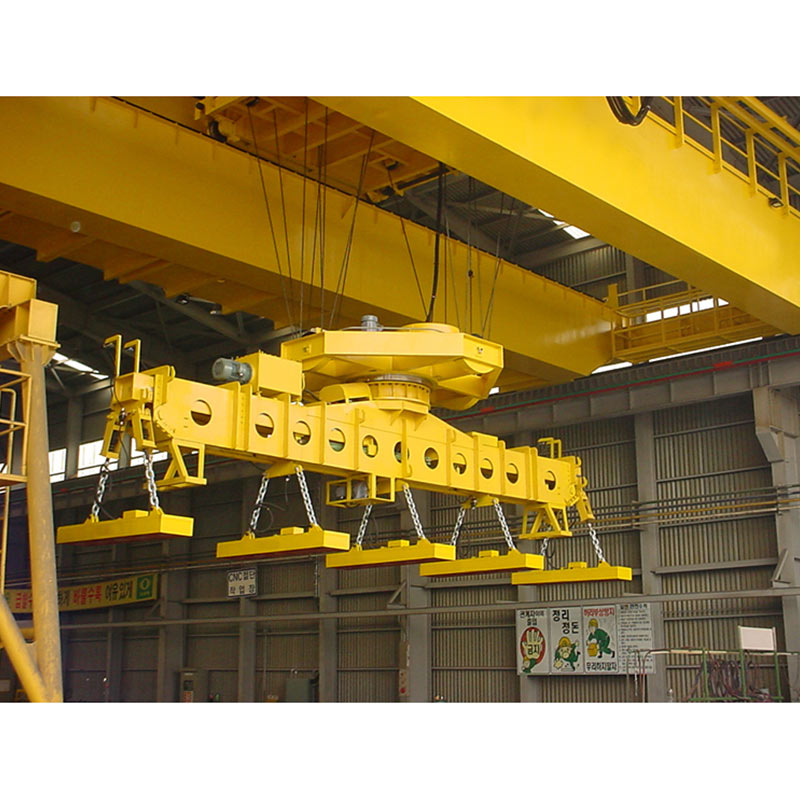

3. 360 degree rotation electromagnet hanging beam is equipped.
4. Suitable for long material handling,like,rebar bundle,steel billet,steel plate.
5.Battery backup functionis optional.
6.High temperature magnet can be optional
7.Magnet is Aluminium wounded.
Overload limiter, limit switch (lifting and traveling), interlocking protection devices, buffer, track sweep plate, shield, bus bar protection board, anti-collision device, main disconnecting switch, emergency stop system and motor overload protection.
