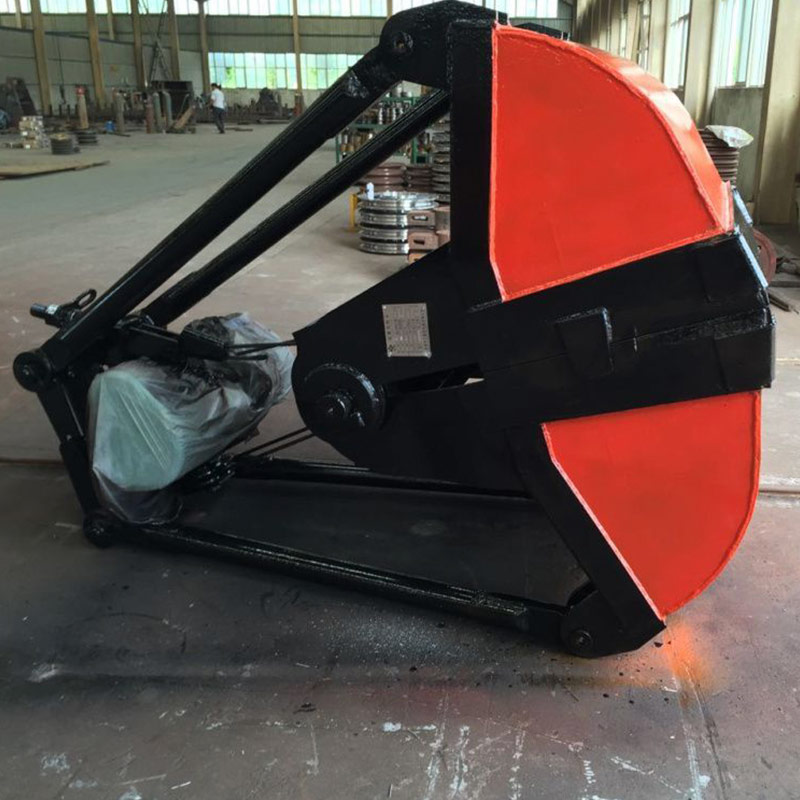

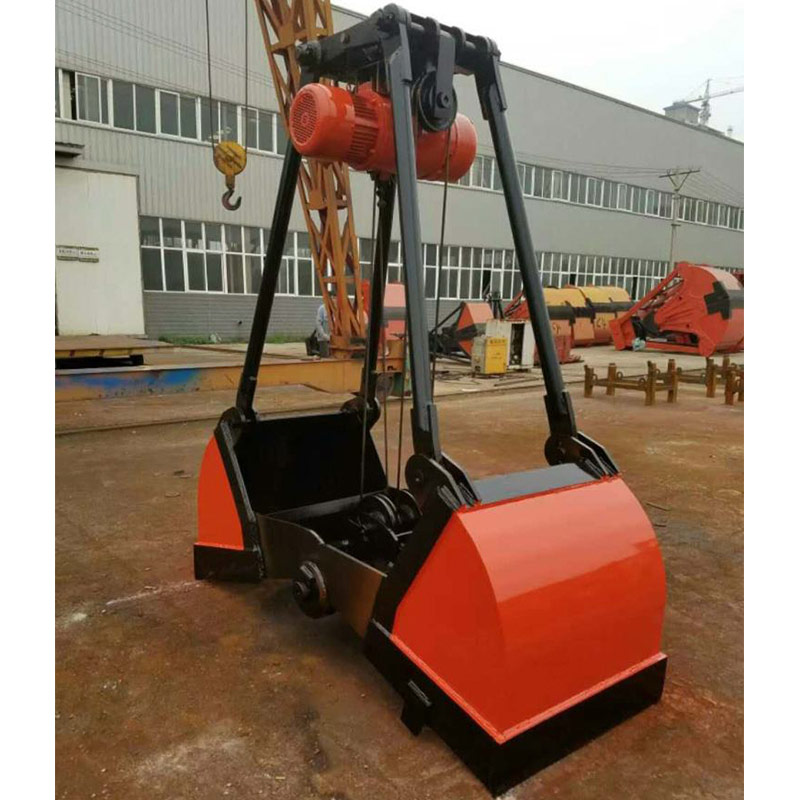

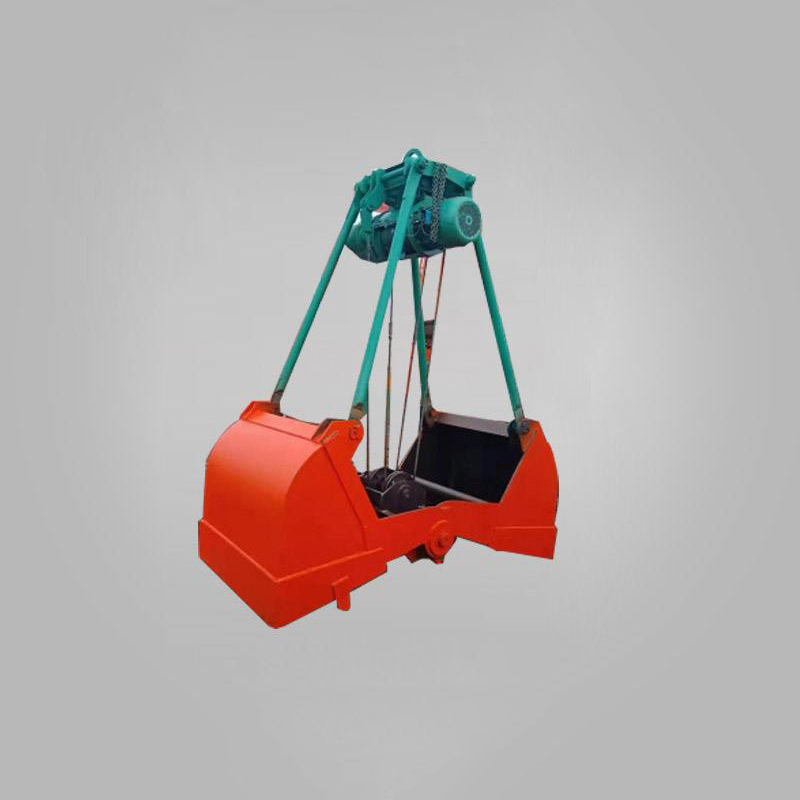

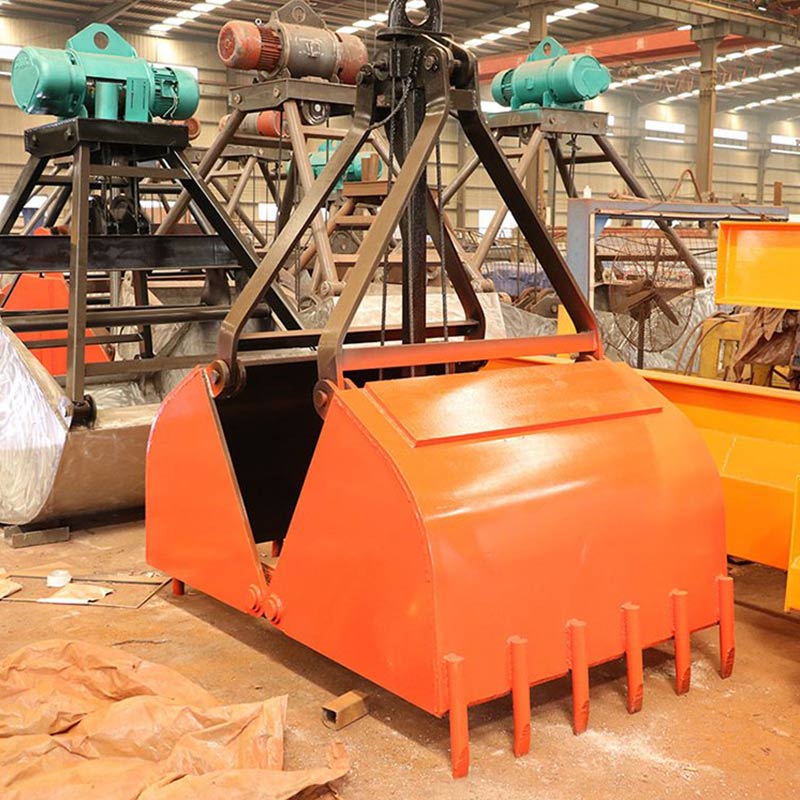

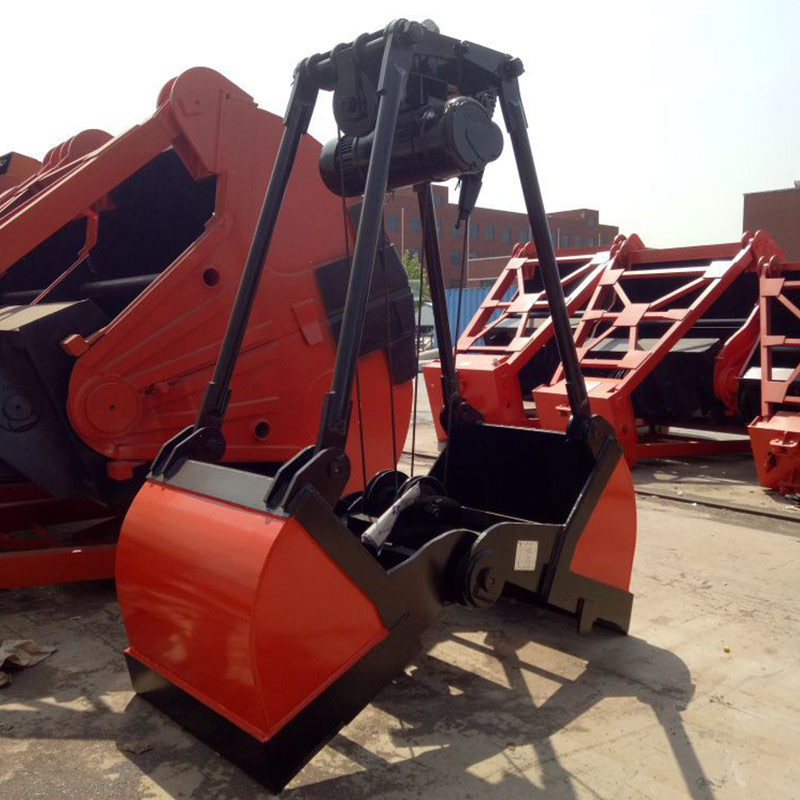

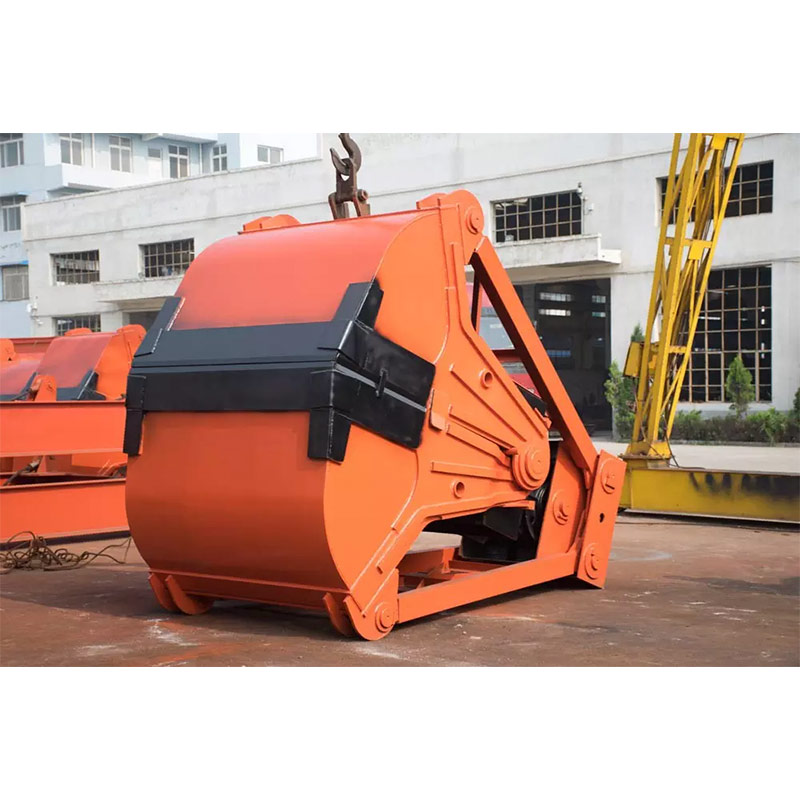

Electric Motor Grab Bucket

Electric motor grab are often used to utility of all kinds of crane with their own open and close institutions, can be load and unload material in any height.Productivity is higher than the single grab, easying to operation,loading and unloading power high. Apply to grab all kinds of loose materials. Using this grab,according to hoist height add the cable reel machine conveying energy.

Description

The electric motor grab is different from other grabs, and the electric motor grab has its own characteristics. Electric motor grab with closed organization itself.Electric motor grab’s type is various.The electric motor grab can be regarded as a closed drum moved to grab itself.Since the electric motor grab is no longer like the four rope grab bucket which need ,the up pull of the closing rope.The self-weight of the grab bucket as mining effect,so the capture force is bigger .It is suitable for capture the materials like ore ect..

Features:

1. Electric motor grab has the advantages of simple structure and good perform of rope grab and also the high productivity of the powered grab.
2. Electric motor grab can be used in single hook crane and ship deck cranes. The grab is widely used in ship, port, railway station, factory, mine and other transport departments. Suitable for all type of bulk cargos like grain, fertilizers, cement, coal, barley, wheat, iron ore, sun flower seed, corn, maize, clay and  etc.
3. Manufactured in every capacity 3 cbm to 30 cbm with reducing capacity system.
4. Supplied with removable spill plates, giving the capability to work light and heavy cargos with the one grab.
5. Radio remote control unit gives facility to start or stop the grab with one button. Radio control unit will operate from 100 m distance from the grab.
6. Work with oil circulation and battery.

Model Volume （m³） Type The rate of material （t/m³） Capturing the material（T） Power （KW）



 Self weight

（T）

 H

（mm）

 H1（mm） A（mm） B

（mm）

 C

（mm）

 S

（mm）
ZD15 1.5 Heavy ≤2 3 15 2.9 3560 4145 1950 2800 1450 680
ZD20 2 Heavy ≤2 4 18.5 3.6 3870 4490 2300 3000 1400 720
ZD25 2.5 Heavy ≤2 5 22 4.4 4100 4800 2500 3100 1650 680
ZD30 3 MIddle ≤1.2 3.6 22 4.68 4140 4860 2500 3200 1896 680
ZD60 6 Light ≤1 6 22 5.6 4540 5190 2800 3700 2196 1050
ZD10 1 Heavy ≤2.5 2.5 11 2.8 3467 4052 2100 2600 1100 577
ZD50 5 Light ≤1 5 22 4.1 4440 4720 2800 3700 2035 1000
D3 0.3 Heavy ≤1.5 0.45 1.5 0.95 1850 2220 1200 1500 750 360
D5 0.5 Heavy ＞1.6~2.4 0.8~1.2 3 1.29 2280 2530 1365 1970 896 540
D7 0.75 Heavy ＞1.6~2.4 1.2~1.8 3 1.32 2385 2650 1630 2200 950 570
D10 1 MIddle ＞0.8~1.2 0.8~1.2 3 1.4 2620 2620 1900 2600 1080 630
D15 1.5 MIddle ＞0.8~1.2 0.8~1.2 4.5 1.52 2620 2620 1920 2700 1178 780
D20 2 MIddle ＞0.8~1.2 1.6~2.4 7.5 1.95 2830 2830 2000 2900 1300 780
