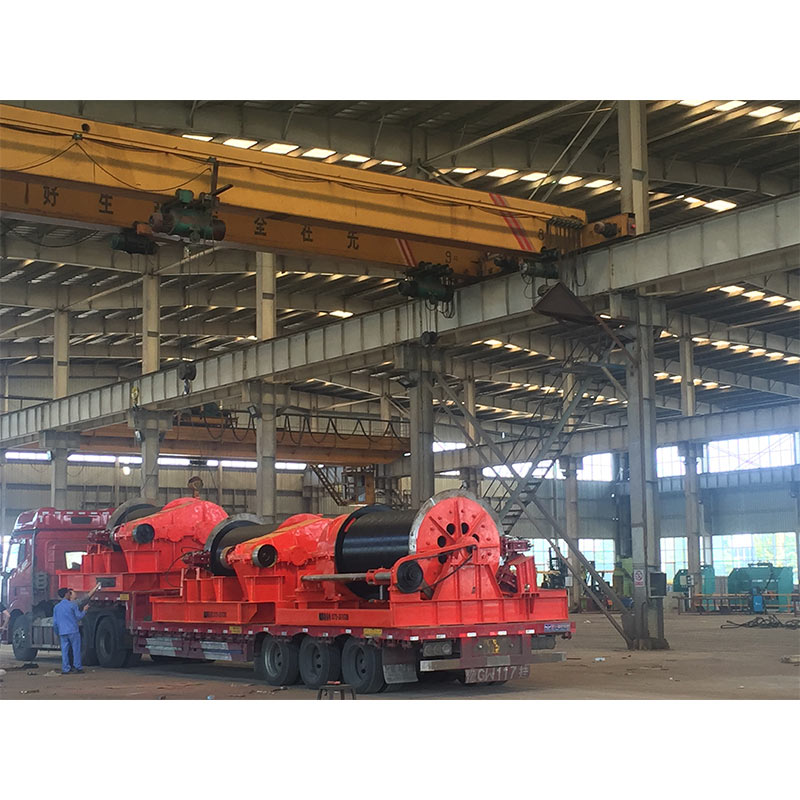

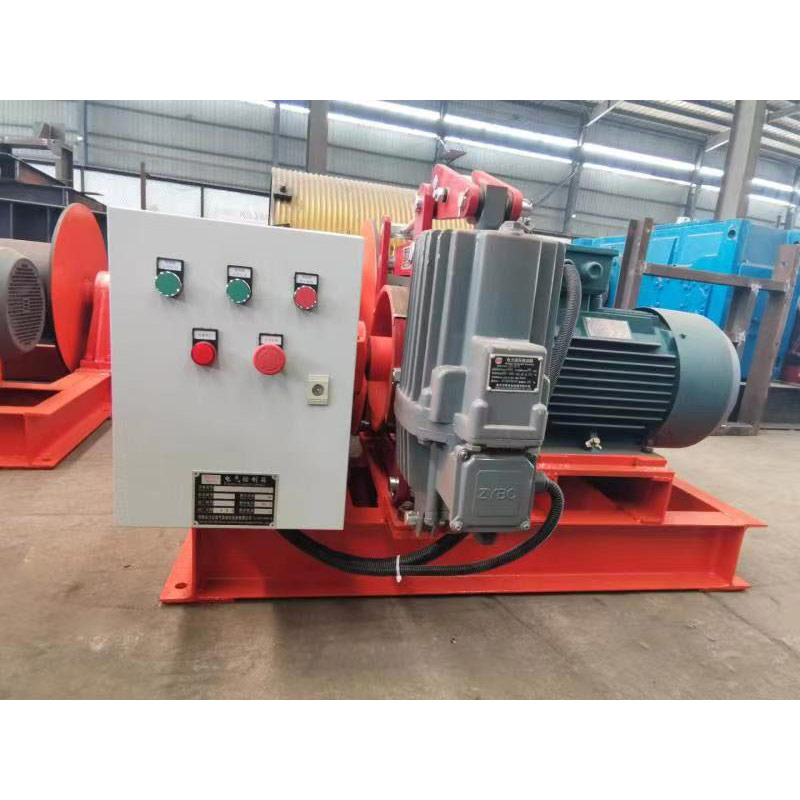

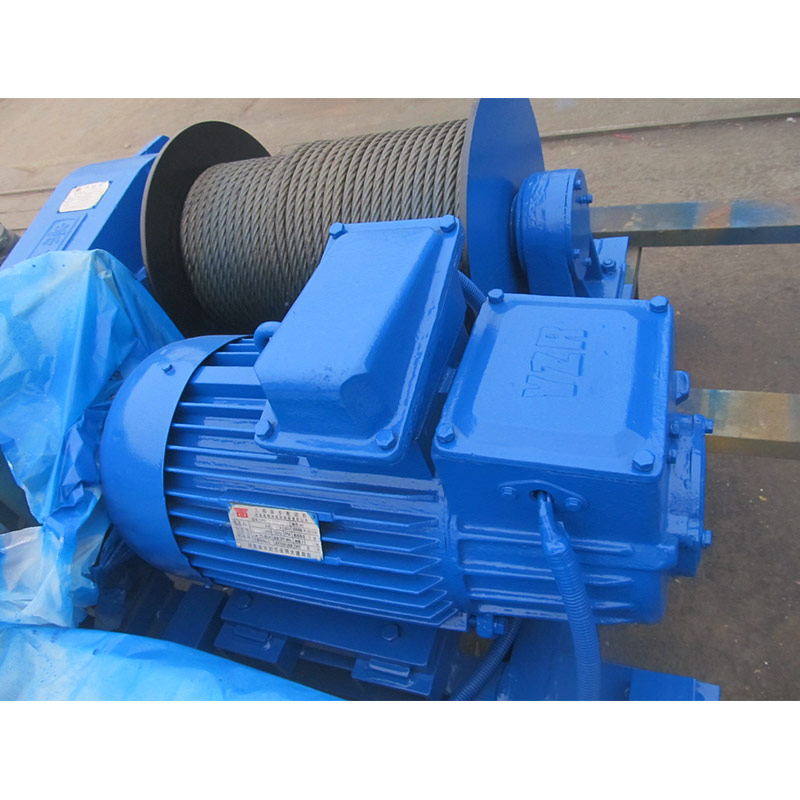

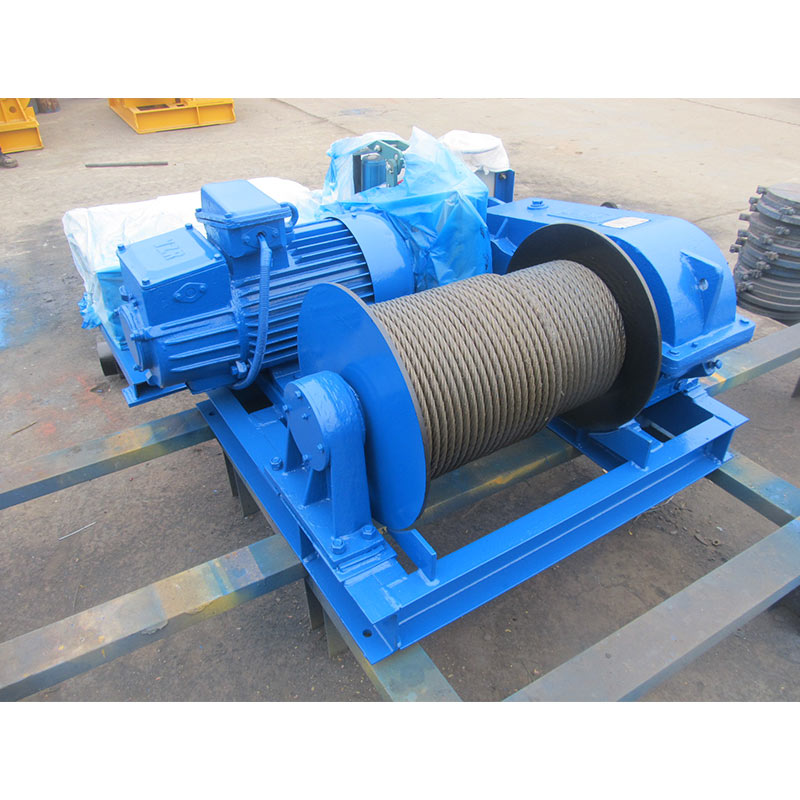

JK series electric winch is a kind of fast speed electric winch. It’s mainly used for materials lfting and tracton the weight drops duting construction. The Jk series electronic control high speed winch is a device that drives the drum by human or mechanical power and winds the rope to complete the traction work. Simple hoisting equipment for lifting heavy objects vertically, horizontally or tilting.
JK fast series Winch mainly used for large and oversize concrete of steel installation and disassembly of mechanical equipment.This structural characteristic is wirerope orderly arrangement lifting is safe and realiable.It is suitable for bridge port and ect road and bridge engineering and large factories and mines engineering equipments installation.
JK series electric winch have high versatility, compact structure, small size, light weight, heavy lifting and convenient handling. Auxiliary equipment for automated operation lines. It can be used alone or as a component of machinery such as lifting, road construction, and mine hoisting.
JK series electric winch are widely used because of their simple operation, large amount of rope winding and convenient displacement. Mainly used for material lifting or flat dragging in construction, water conservancy, forestry, mines, docks, etc. It can also be used for crane as the main winch; it is a special winch for derrick, gantry and hoisting trolley. It is suitable for the construction and installation of small equipment in construction and mining lifting plants.
JK series electric winch most of time, follow-operated by people on the ground, also can operate in the room, or operate with wireless type with far way, except exclusive-use, also can match-use with electric trolley and plain trolley, geared trolley, these trolleys with simple structure, light weight, easy to load and unload, can use like this forever, but also can be used temporarily.
1. High safety and precision;
2. Safety protection device;
3. Starting and stopping smoothly;
4. Reasonable structure, easy maintenance;
5. Top quality with competitive price.
| Model | Rated Tension
（KN) |
Rated Speed (m/min) | Rope Capacity (m) | Rope Diameter | Electromotor Type | Electromotor Power (KW) | Reducer | Weight(kg) |
| JK0.5 | 5 | 22 | 110 | Φ7.5 | Y100L2-4 | 3 | Zq250 | 200 |
| JK1 | 10 | 22 | 80 | Φ9.3 | Y112M-4 | 4 | ZQ250 | 300 |
| JK1.6 | 16 | 24 | 115 | Φ12.5 | Y132S-4 | 5.5 | ZQ350 | 500 |
| JK2 | 20 | 24 | 110 | Φ12.5 | Y132M-4 | 7.5 | ZQS350 | 550 |
| JK3.2 | 32 | 30 | 250 | Φ15.5 | YZR180L-6 | 15 | ZQS500 | 1150 |
| JK5 | 50 | 30 | 240 | Φ21.5 | YZR225M-6 | 30 | ZQS650 | 2500 |
| JK8 | 80 | 30 | 210 | Φ26 | YZR280S-8 | 45 | ZQS750 | 3500 |
| JK10 | 100 | 30 | 300 | Φ30 | YZR315S-8 | 55 | ZQS850 | 5100 |
