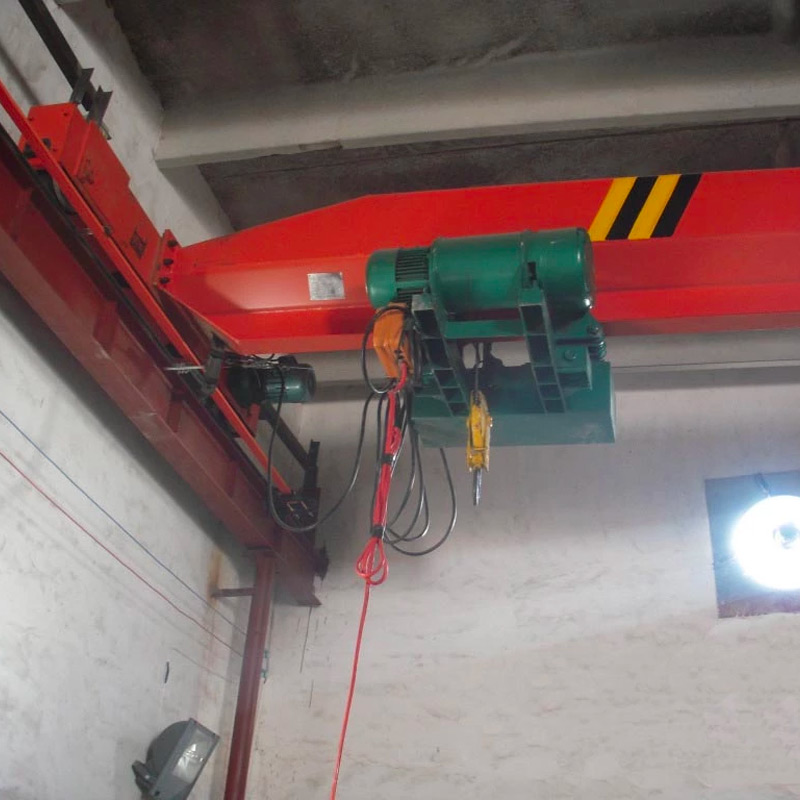

LDC Low Headroom Type Single Girder Overhead Crane

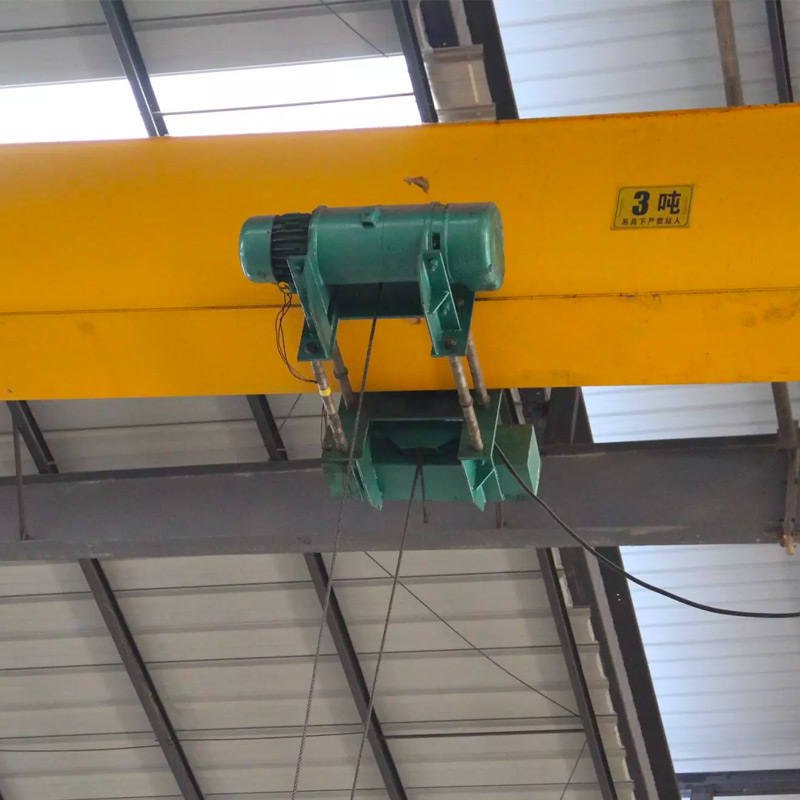

The electric hoist with low headroom structure can effectively increase the lifting height, so that it is applicable to the places where the workshop is low and the requirement of lifting height is high.

1.The main beam is a box structure, good manufacturing technology, small welding deformation, small residual stress
2.The fillet welds are welded by automatic CO2 gas shielded welding, with high quality and beautiful appearance

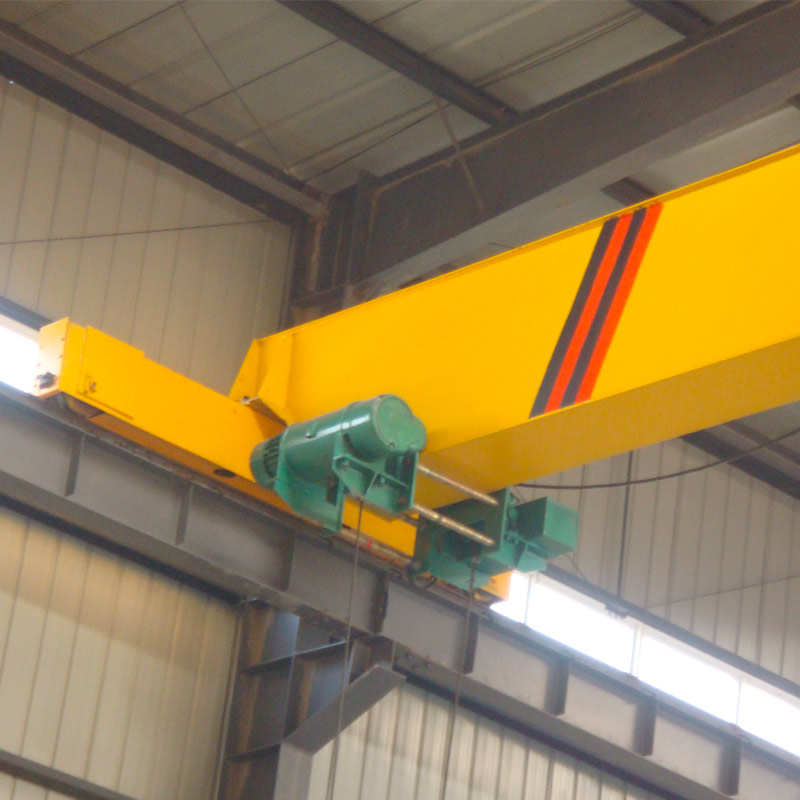

3.The improved design of the main end beam, diversified connection, effectively increase the lifting height, overcome the phenomenon of three legs, long service life of the wheel, smooth operation
4.Optimized and improved electric wire rope hoist, the wheels run smoothly, the whole machine low noise, strong overload capacity, the working level of the mechanism is high, the force state is good, not slip
5.Main contactor using Schneider electrical components, high reliability, long service life;
6.Electric hoist power supply using C-type rail suspension cable, novel structure, beautiful appearance, safe and reliable long life
7.Independent mobile ground operating flashlight door or remote control device, safe and convenient operation

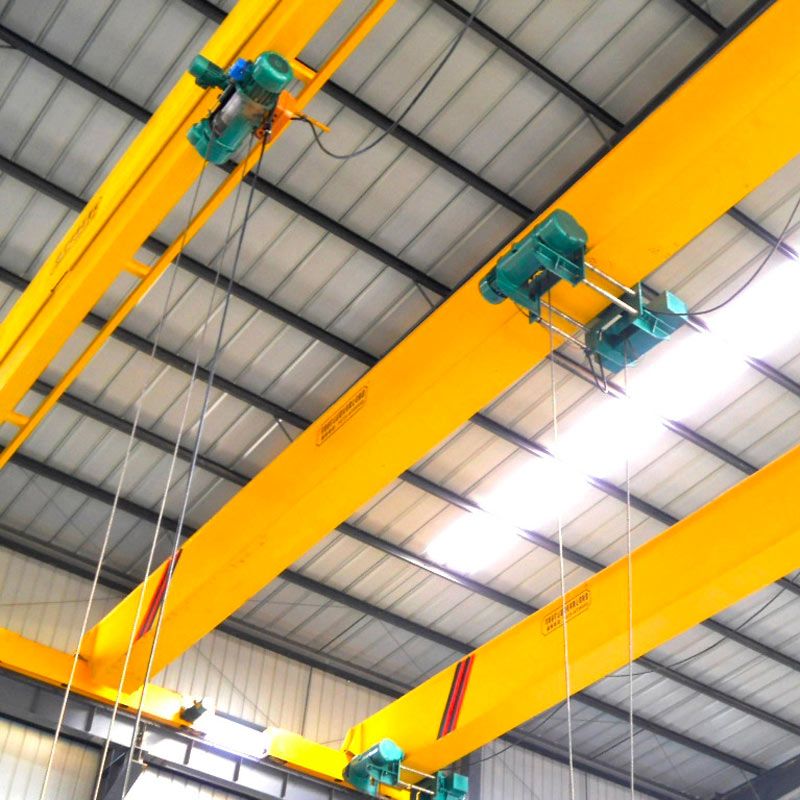

8.Overhead traveling on the steel structure, normally in workshop
9.Light self weight, could save steel structure cost.
10.Lifting and traveling is very accurate.
11.VVF/ frequency inverter control, continuous speeds to operate, very stable to lift and traveling.
12.Six direction action, to make sure the enough wide working area.

Full safety system as follows:

Weight overload protection
Emergency stop system
Over current protection,Short-circuit protection
Phase sequence protection
Zero position protection
Voltage loss protection
Limit switch and stopper for crane long traveling and cross traveling
Lifting overhigh and overlow limit switch
