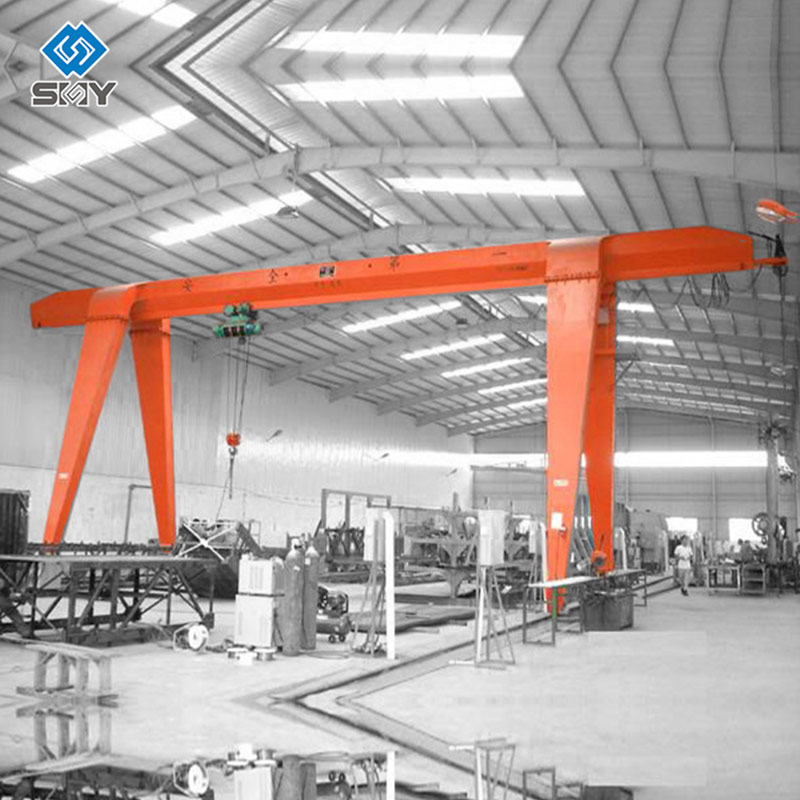

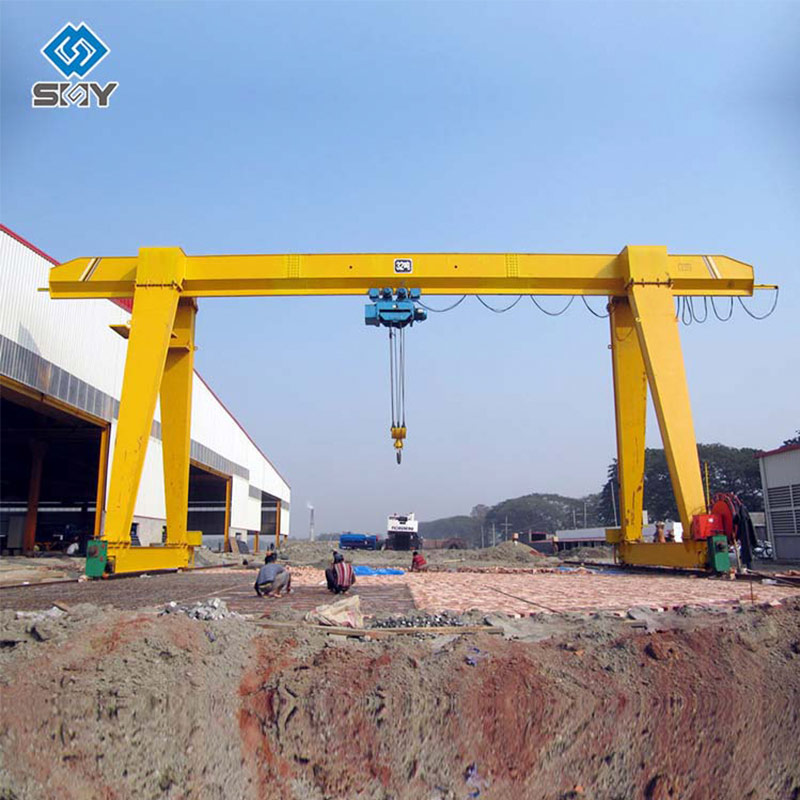

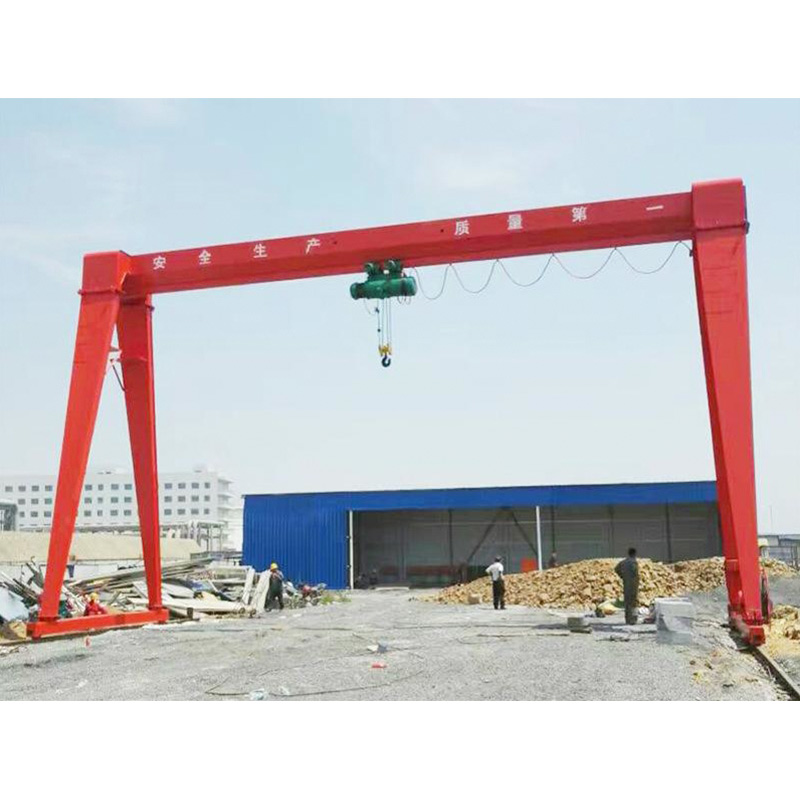

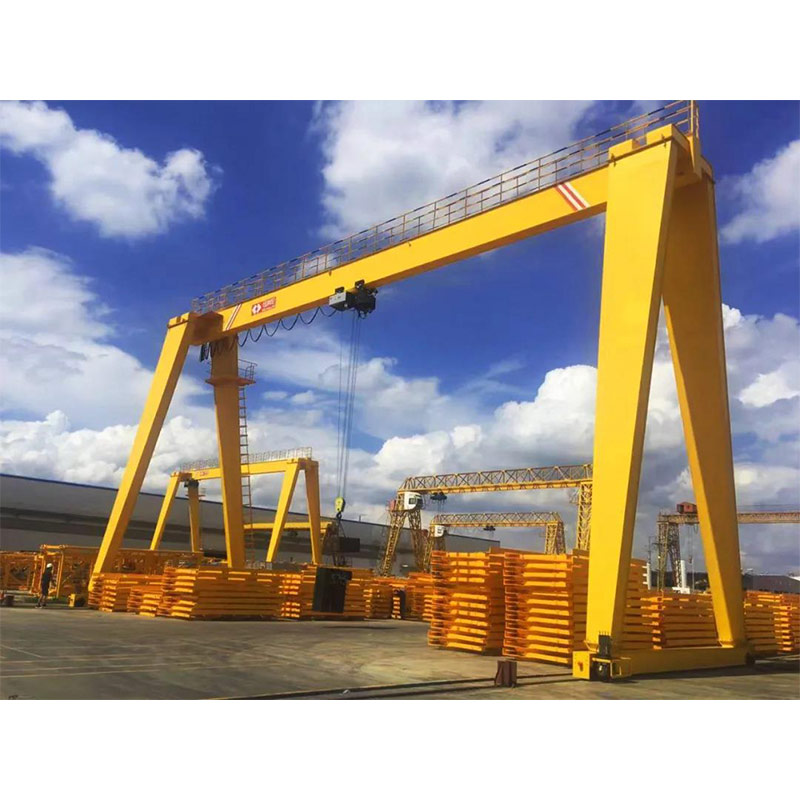

MH type single girder gantry with electric hoist is small-medium type lifting equipment which includes main girder, under the main girder there are outriggers and trolley running mechanism, which is used together with CD/MD electric hoist. MH gantry cranes are also available for jib and non-jib gantry cranes. If there is a cantilever, the crane can load the goods to the edge of the crane through the outrigger, which is very convenient and efficient. This product is a general-purpose crane, which is mostly used for loading, unloading and grabbing materials in open spaces and warehouses.
The MH type crane has a lifting capacity of 5 tons to 20 tons; the span is 12m to 30m; the lifting height is 6m, 9m, 12m, etc.; the working duty is A3; the working temperature is -20°C to +40°C. Simple and compact structure and stable performance; Easy installation and high efficiency; Overload and low voltage protection device; Overhang control and cabin control; Easy maintenance.
1.Heavy Duty and High Efficient;
2. Suitable for any environment ( High Temperature, Explosion Proof and so on);
3. Long Life Span: 30-50years;
4. Easy for Installation and maintenance;
5. Reasonable structure and strong rigidity;
6. The speed can be frequency inverter speed control;

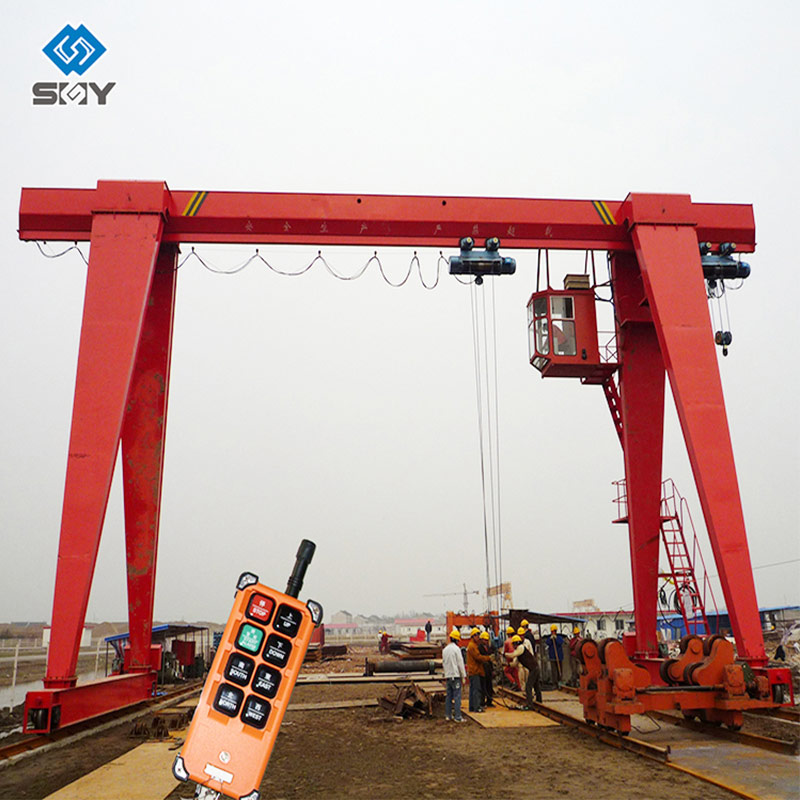

7. Control method is cabin control or remote control;
8. Depending on lifting cargo, crane can be equipped with hanging beam magnet or magnet chuck or Grab or C hook;
9. Crane is equipped with all moving limit switch, loading limit and other standard safety devices, to promise crane work safe.
1.Crane traveling limit switch
2.Weight overload protection device
3.Lifting height limit device
4.Voltage lower protection function
5.Phase sequence protection function
6.Warning indicator: flashing lights and warning sound.
7.Emergency stop function
8.Rain cover for outside hoist, driving units, electrical cubicle.
9.Wireless infra-detector for anti-collusion
| Capacity | T | 3 | 5 | 10 | 16 | 20 | ||
| Span | m | 12,16,20,24,30 | ||||||
| Operational method | Pendent Line With Press Button /Cabin/ Remote | |||||||
| Speed | Lifting | m/min | 8 ,8/0.8 | 8,8/0.8 | 7,7/0.7 | 3.5 | 3.5 | |
| Cross traveling | 20 | 20 | 20 | 20 | 20 | |||
| Long traveling | Ground | 20 | 20 | 20 | 20 | 20 | ||
| Cabin | 20, 30,45 | 20, 30,40 | 30,40 | 30,40 | 30,40 | |||
| Motor | Lifting | Type /kw | ZD41-4/4.5
ZDS1-4/0.4/4.5 |
ZD141-4/7.5 ZDS10.8/4.5 | ZD151-4/13 ZDS11.5/4.5 | ZD151-4/13 | ZD152-4/18 | |
| Cross traveling | ZDY12-4/0.4 | ZDY121-4/0.8 | ZDY21-4/0.82 | ZDY121-4/0.82 | YZD-4/0.84 | |||
| Long traveling | Ground | ZDY21-4/0.82
ZDY21-4/1.52 |
YZY22-4/1.52
YZR132M2-6/3.72 |
YZR22-4/1.52 | YZR160M1-6/6.32
YZR160M2-6/8.52 |
YZR160M1-6/6.32
YZR160M2-6/8.52 |
||
| Cabin | ZDR100-4/1.52
ZDR112-4/2.12 |
YZR112L1-4/2.12
YZR160M1-6/2.12 |
YZR112L1-4/2.12
YZR160M2 |
YZR160M2-6/8.52
YZR160L2-6/112 |
YZR160M2-6/8.52
YZR160L2-6/112 |
|||
| Electric hoist | Model | CD1/MD1 | CD1/MD1 | CD1/MD1 | CD1 | HC | ||
| Lifting height | m | 6,9,12,18,24,30 | ||||||
| Working duty | A3 | |||||||
| Power supply | 380V 60HZ 3phase AC (According to your demand ) | |||||||
