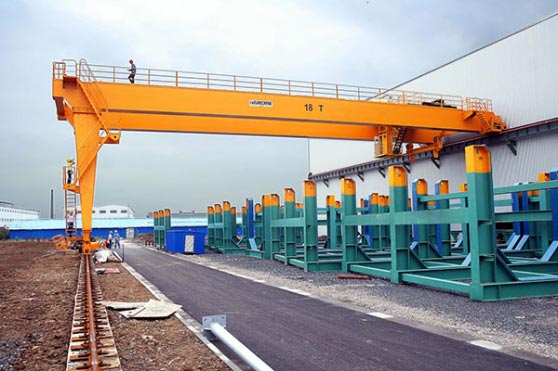

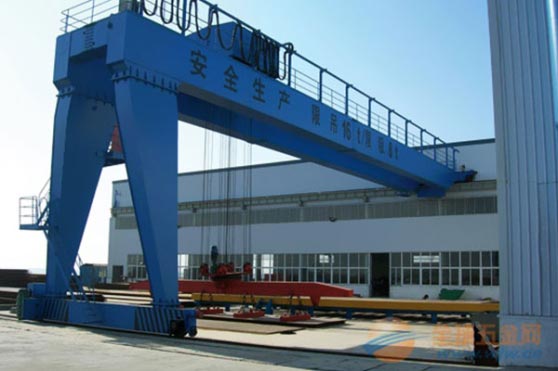

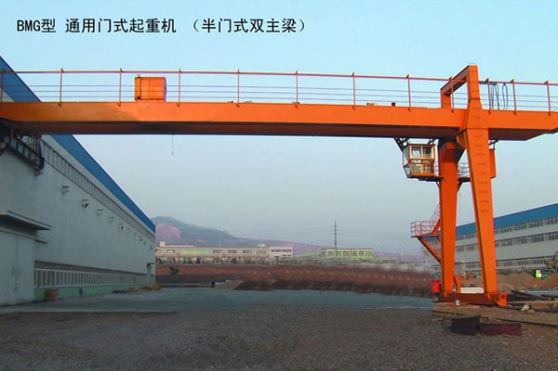

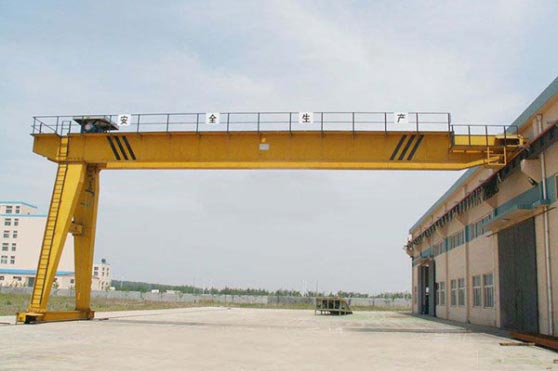

Semi Double Girder Gantry Crane

Capacity:10T
Span:10,12,16,20m
Lifting height: 6m
Lifting speed: 20,30m/min

Apply: Semi gantry crane compared with electric single-girder crane, save investment and space, compared with electric hoist gantry crane, save the production space.

Get A Free Quote more

HOT PRODUCTS

Boat and Yacht Handling Crane

Double Girder Gantry Crane for Shipbuilding

Marine Door Hatch Cover Gantry Crane

Portable Gantry Crane

Description
Specifications
Features

Semi gantry crane compared with electric single-girder crane, save investment and space, compared with electric hoist gantry crane, save the production space, therefore when selecting ordinary electric single-girder crane or electric hoist gantry crane is not very ideal, semi gantry crane is a better solution.

1, Semi gantry crane structure: by the lifting mechanism and the trolley, single girder and leg, electric cabinet, operating system and safety protection system, etc;

2. Semi gantry crane drive: squirrel-cage motor + machine of decelerate of hard tooth flank, disc brakes, free maintenance;

3. Semi gantry crane operation mode: the cable to hold (IP65, life 500000 times), wireless remote control, driving operation

We designed Semi Gantry cranes with different capacities and spans that will meet your requirements

Lifting capacity			t	10
Span			m	10	12	16	20
Lifting height			m	6
Travelling mechanism	Travelling speed	Ground	m/min	20
		Controling room		20 30
	Motor	Ground		ZDY(D)122-4/1.5 X2		ZDY131S-4/2.2 X2
		Controling room		ZDR100-4/1.5 X2		ZDR112L1-4/2.1 X2
	Reducer			LDA1 LDAC1		LDH LDHC
	Wheel diameter		mm	Φ270		Φ400
Electric hoist	Type			CD1 MD1
	Lifting speed		m/min	7,7/0.7
	Travelling speed		m/min	20 (30)
	Motor	Lifting		ZD151-4/13 ZDS11.5/13
		Travelling		ZDY121-4/0.8 X2
Working system				A4
Steel track recommended				P38
Power source				3-Phase 380V 50Hz
The crane weight		Ground	Kg	6600	7500	8350	10650
		Controling room	Kg	7400	8300	9150	11450
Max. wheel load			KN	78	85	94	103
Basic dimendions		H1	mm	1670
		H2		900	1000	1100	1250
		H3		720	865	920	970
		B		4800	5200
		B1		3700
		B2		1600
		B3		2000		2500	3000

1. Quality problems of products sold by our company will be solved as per the “three guarantees” system of our company by the “three guarantees” service team;

2. Related personnel will be sent to the site immediately after receiving quality complaints (by call, letter or oral notice) from clients;

3. Personnel involved in after-sales service shall be serious and considerate in handling the problem to make clients care-free;

4. In addition to solve quality problems, personnel involved in after-sales service shall train clients, answer their technical inquiries and related questions free of charge;

5. Related cost for products with quality problem will be shouldered by our company. Our company charges for quality problems caused by clients (or problems after the warranty term), but the charge will not be higher than the expense (or cost);

Develop your lifting solution
