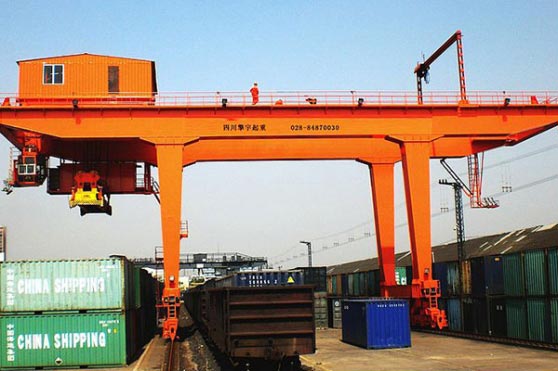

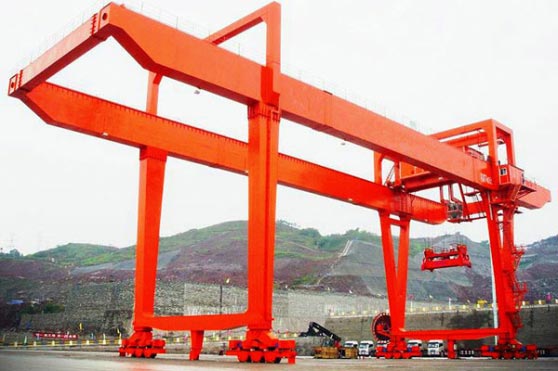

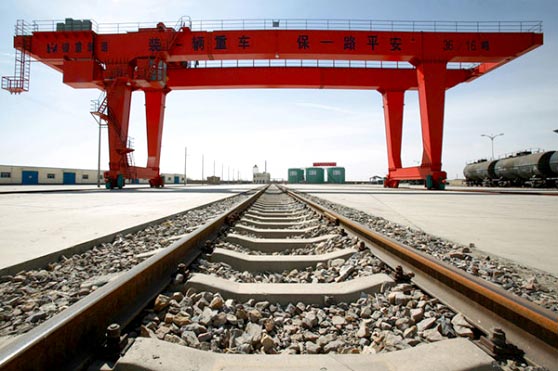

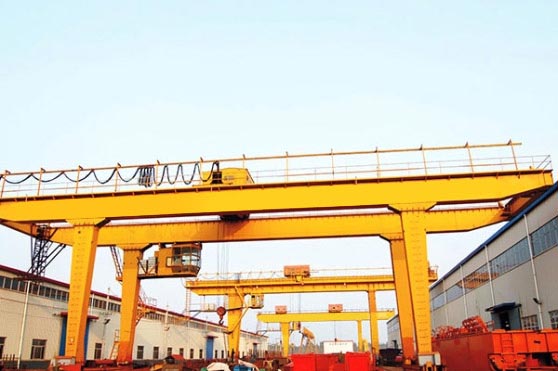

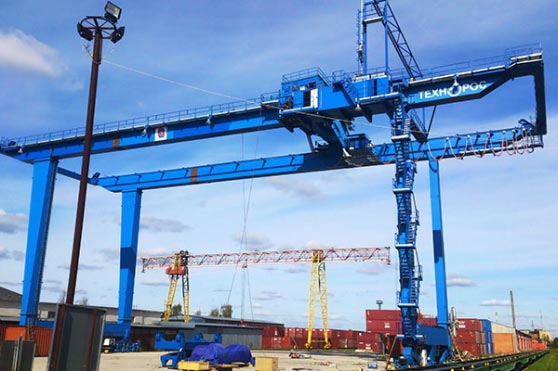

U-Shaped Double Girder Gantry Crane

Capacity:5~400T
Span:18~98m
Lifting height: 16m
Lifting speed: 20,30m/min

Apply: 1.The door frame have single main type and double girder type two kinds of for the user choice for reasonable use of material, the main variable cross-section of the optimization design.

Get A Free Quote more

HOT PRODUCTS

L-Shaped Legs Single Girder Gantry Crane with Winch

Double Girder Gantry Crane

Wood Handling Crane

cổng trục

Description
Specifications
Features

1. The door frame have single main type and double girder type two kinds of for the user choice for reasonable use of material, the main variable cross-section of the optimization design.

2. The door frame with rigid legs have simple columnar type and double pillar.

3. On a pair of main car hook, the two main girder are set, but may be alone and lateral movement 0-2m.

4. There is main, under the car of hook, in two main girder below center.

5. Under the car, each other across the homework.

6. All the lifting mechanism and operation organization adopts inverter.

7. A rigid legs side, at the top of the main girder have arms maintenance, to complete the crane car maintenance work.

8.In order to prevent the storm, with safe and reliable clip rail, such as the journal, chain wind device

Lifting Capacity		t	Under Sling or Spreader for 50ton
Span		m	30
Lfiting Height		m	16
Working System			A6
Load and Unload			20', 40', Container
Speed	Hoisting	m/min	0-10
	Trolley Travelling		50-80
	Crane Travelling		30-50
Motor	Hoisting	Kw	YZP280M-8/2*55
	Trolley Travelling		YZP225M-6/2*22
	Crane Travelling		YZP180L-6/4*15
Weight	Trolley	t	52
	Total Weight		253
Max. Wheel Load		KN	260
Steel Track Recommended			P43
Power Supply			3P AC 50Hz 380V

1. Quality problems of products sold by our company will be solved as per the “three guarantees” system of our company by the “three guarantees” service team;

2. Related personnel will be sent to the site immediately after receiving quality complaints (by call, letter or oral notice) from clients;

3. Personnel involved in after-sales service shall be serious and considerate in handling the problem to make clients care-free;

4. In addition to solve quality problems, personnel involved in after-sales service shall train clients, answer their technical inquiries and related questions free of charge;

5. Related cost for products with quality problem will be shouldered by our company. Our company charges for quality problems caused by clients (or problems after the warranty term), but the charge will not be higher than the expense (or cost);
