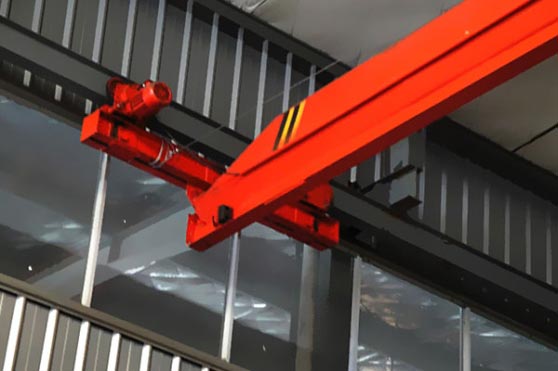

Underhung Single Girder Overhead Crane
- Capacity:1~20t
- Span:7.5~31.5m
- Lifting height: 6,9,12,18,24,30m
- Lifting speed: 0.35/3.5,0.7/7,0.8/8m/min or 3.5,7,8m/min

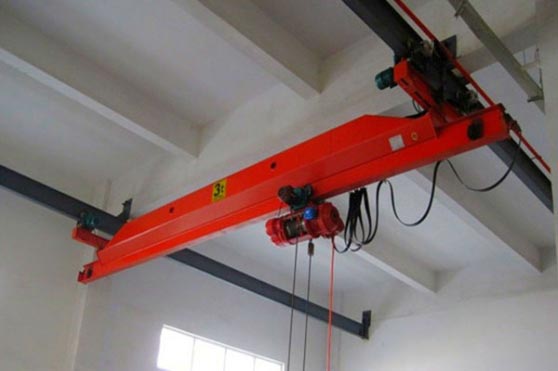

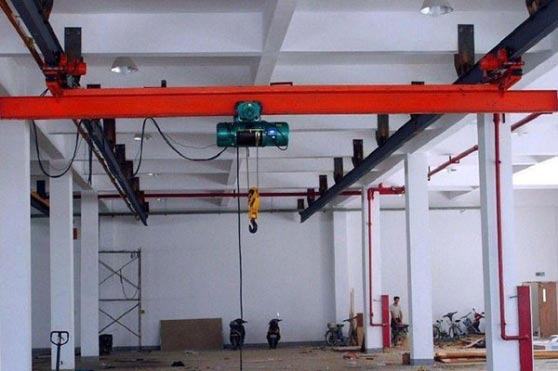

Apply: Monorails and underhung cranes with monorail hoist owns tight dimension, low building headroom, light dead weight and light wheel load. It is a light duty track traveling crane with trajectory.
Get A Free Quote
HOT PRODUCTS
- Description
- Specifications
- Features
Monorails and underhung cranes with monorail hoist owns tight dimension, low building headroom, light dead weight and light wheel load. It is a light duty track traveling crane with trajectory.The standard capacity is 0.5T, 1T, 2T, 3T, 5T; the span is from 3m to16m. it adopts ground control and works at a temperature of -25--40 centigrade. It is prohibited to use the equipment at combustible,explosive or corrosive environment.
Under Running Single Girder Overhead Crane applies to works and storehouses where it is ≥100 mm height between the rail surface and the rafter of roof truss.
The trolley forms a set with electric hoist, The mechanism is nimble, with safe and reliable motion. It is capable of designing and making non-standard hoisting equipment.
|
Capacity
|
T
|
0.5
|
|||||||
|
Span
|
m
|
3.5
|
8.5
|
12.5
|
16.5
|
20
|
22.5
|
||
|
Lifting height
|
m
|
6/9/12/18/24/30
|
|||||||
|
Lifting speed
|
m/min
|
8or (8/0.8）
|
|||||||
|
Trolley travelling speed
|
m/min
|
20
|
|||||||
|
Crane travelling speed
|
m/min
|
20
|
|||||||
|
Total weight
|
kg
|
1060
|
1540
|
1876
|
1960
|
2745
|
2976
|
||
|
Max. Wheel load
|
KN
|
6.28
|
7.19
|
7.97
|
9.87
|
10.09
|
10.66
|
||
|
Rail recommended
|
Model
|
120a~145c
|
|||||||
|
Total motor power
|
kw
|
1.8kw
|
|||||||
|
Main dimension (mm)
|
Span(m)
|
3.5
|
8.5
|
12.5
|
16.5
|
20
|
22.5
|
||
|
Rail top to hook center
|
H4
|
830
|
|||||||
|
Crane base distance
|
W
|
1000
|
1500
|
2000
|
2500
|
3000
|
|||
|
Crane width
|
B
|
1500
|
2000
|
2500
|
3000
|
3500
|
|||
|
Hook left limitation
|
S1
|
370
|
|||||||
|
Hook right limitation
|
S2
|
223
|
|||||||
|
Capacity
|
T
|
1
|
|||||||
|
Span
|
m
|
3.5
|
8.5
|
12.5
|
16.5
|
20
|
22.5
|
||
|
Lifting height
|
m
|
6/9/12/18/24/30
|
|||||||
|
Lifting speed
|
m/min
|
8or (8/0.8）
|
|||||||
|
Trolley travelling speed
|
m/min
|
20
|
|||||||
|
Crane travelling speed
|
m/min
|
20
|
|||||||
|
Total weight
|
kg
|
1075
|
1555
|
1891
|
2309
|
3111
|
3383
|
||
|
Max. Wheel load
|
KN
|
9.52
|
10.19
|
10.91
|
11.91
|
13.87
|
14.53
|
||
|
Rail recommended
|
Model
|
120a~145c
|
|||||||
|
Total motor power
|
kw
|
2.5kw
|
|||||||
|
Main dimension (mm)
|
Span(m)
|
3.5
|
8.5
|
12.5
|
16.5
|
20
|
22.5
|
||
|
Rail top to hook center
|
H4
|
847
|
|||||||
|
Crane base distance
|
W
|
1000
|
1500
|
2000
|
2500
|
3000
|
|||
|
Crane width
|
B
|
1500
|
2000
|
2500
|
3000
|
3500
|
|||
|
Hook left limitation
|
S1
|
310
|
|||||||
|
Hook right limitation
|
S2
|
130
|
|||||||
|
Capacity
|
T
|
2
|
|||||||
|
Span
|
m
|
3.5
|
8.5
|
12.5
|
16.5
|
20
|
22.5
|
||
|
Lifting height
|
m
|
6/9/12/18/24/30
|
|||||||
|
Lifting speed
|
m/min
|
8or (8/0.8）
|
|||||||
|
Trolley travelling speed
|
m/min
|
20
|
|||||||
|
Crane travelling speed
|
m/min
|
20
|
|||||||
|
Total weight
|
kg
|
1162
|
1541
|
2184
|
2783
|
3585
|
3903
|
||
|
Max. Wheel load
|
KN
|
16.35
|
16.32
|
17.65
|
19.03
|
20.97
|
21.73
|
||
|
Rail recommended
|
Model
|
120a~145c
|
|||||||
|
Total motor power
|
kw
|
4.2kw
|
|||||||
|
Main dimension (mm)
|
Span(m)
|
3.5
|
8.5
|
12.5
|
16.5
|
20
|
22.5
|
||
|
Rail top to hook center
|
H4
|
1020
|
|||||||
|
Crane base distance
|
W
|
1000
|
1500
|
2000
|
2500
|
3000
|
|||
|
Crane width
|
B
|
1500
|
2000
|
2500
|
3000
|
3500
|
|||
|
Hook left limitation
|
S1
|
290
|
|||||||
|
Hook right limitation
|
S2
|
170
|
|||||||
|
Capacity
|
T
|
3
|
|||||||
|
Span
|
m
|
3.5
|
8.5
|
12.5
|
16.5
|
20
|
22.5
|
||
|
Lifting height
|
m
|
6/9/12/18/24/30
|
|||||||
|
Lifting speed
|
m/min
|
8or (8/0.8）
|
|||||||
|
Trolley travelling speed
|
m/min
|
20
|
|||||||
|
Crane travelling speed
|
m/min
|
20
|
|||||||
|
Total weight
|
kg
|
1292
|
1840
|
2379
|
3019
|
3704
|
4028
|
||
|
Max. Wheel load
|
KN
|
23.22
|
23.07
|
24.07
|
25.50
|
27.11
|
27.87
|
||
|
Rail recommended
|
Model
|
120a~145c
|
|||||||
|
Total motor power
|
kw
|
5.7kw
|
|||||||
|
Main dimension (mm)
|
Span(m)
|
3.5
|
8.5
|
12.5
|
16.5
|
20
|
22.5
|
||
|
Rail top to hook center
|
H4
|
1134
|
|||||||
|
Crane base distance
|
W
|
1000
|
1500
|
2000
|
2500
|
3000
|
|||
|
Crane width
|
B
|
1500
|
2000
|
2500
|
3000
|
3500
|
|||
|
Hook left limitation
|
S1
|
290
|
|||||||
|
Hook right limitation
|
S2
|
170
|
|||||||
|
Capacity
|
T
|
5
|
|||||||
|
Span
|
m
|
3.5
|
8.5
|
12.5
|
16.5
|
20
|
22.5
|
||
|
Lifting height
|
m
|
6/9/12/18/24/30
|
|||||||
|
Lifting speed
|
m/min
|
8or (8/0.8）
|
|||||||
|
Trolley travelling speed
|
m/min
|
20
|
|||||||
|
Crane travelling speed
|
m/min
|
20
|
|||||||
|
Total weight
|
kg
|
1599
|
2271
|
2996
|
3675
|
5056
|
5493
|
||
|
Max. Wheel load
|
KN
|
37.33
|
37.18
|
38.20
|
39.57
|
42.71
|
43.69
|
||
|
Rail recommended
|
Model
|
120a~145c
|
|||||||
|
Total motor power
|
kw
|
9.1kw
|
|||||||
|
Main dimension (mm)
|
Span(m)
|
3.5
|
8.5
|
12.5
|
16.5
|
20
|
22.5
|
||
|
Rail top to hook center
|
H4
|
1320
|
|||||||
|
Crane base distance
|
W
|
1000
|
1500
|
2000
|
2500
|
3000
|
|||
|
Crane width
|
B
|
1500
|
2000
|
2500
|
3000
|
3500
|
|||
|
Hook left limitation
|
S1
|
360
|
|||||||
|
Hook right limitation
|
S2
|
150
|
|||||||
|
Capacity
|
T
|
10
|
|||||||
|
Span
|
m
|
3.5
|
8.5
|
12.5
|
16.5
|
20
|
22.5
|
||
|
Lifting height
|
m
|
6/9/12/18/24/30
|
|||||||
|
Lifting speed
|
m/min
|
7or (7/0.7）
|
|||||||
|
Trolley travelling speed
|
m/min
|
20
|
|||||||
|
Crane travelling speed
|
m/min
|
20
|
|||||||
|
Total weight
|
kg
|
2372
|
3189
|
4170
|
5161
|
6975
|
7532
|
||
|
Max. Wheel load
|
KN
|
64.08
|
69.85
|
71.01
|
72.90
|
77.10
|
78.33
|
||
|
Rail recommended
|
Model
|
140b~163c
|
|||||||
|
Total motor power
|
kw
|
15.2kw
|
|||||||
|
Main dimension (mm)
|
Span(m)
|
3.5
|
8.5
|
12.5
|
16.5
|
20
|
22.5
|
||
|
Rail top to hook center
|
H4
|
1670
|
|||||||
|
Crane base distance
|
W
|
1000
|
1500
|
2000
|
2500
|
3000
|
|||
|
Crane width
|
B
|
1500
|
2000
|
2500
|
3000
|
3500
|
|||
|
Hook left limitation
|
S1
|
500
|
|||||||
|
Hook right limitation
|
S2
|
500
|
|||||||
Henan Yuntian Crane Co.,LTD. crane could supply not only overhead crane but also the overhead crane solutions, firstly, we will supply overhead bridge crane design, overhead crane manual, overhead crane drawing, overhead crane wiring diagram, overhead crane electrical diagram and overhead crane safety video before or after delivery, our technician will do supervision the installation according to the document, of course, the customer can do installation by themselves according to their requirement.
After installation, our technician will indicate to do the load test according to the overhead crane load test procedure, then overhead crane operator training and overhead crane maintenance training, all the procedure will be made according to the overhead crane training videos and overhead crane training PowerPoint.
Henan Yuntian Crane Co,.LTD. crane has a lot of honor for overhead crane certification for different overhead crane types.
If you want to know more information about overhead crane, please find the overhead crane attachments, overhead crane pdf, overhead crane catalogue to get mover overhead crane specification and overhead crane regulations from the download center.
The Single girder overhead crane include 1 ton overhead crane, 2 ton overhead crane, 3 ton overhead crane, 5 ton overhead crane, 10 ton overhead crane, 16 ton overhead crane, 20 ton overhead crane.
If you need bigger capacity. Please check the double girder overhead crane.
