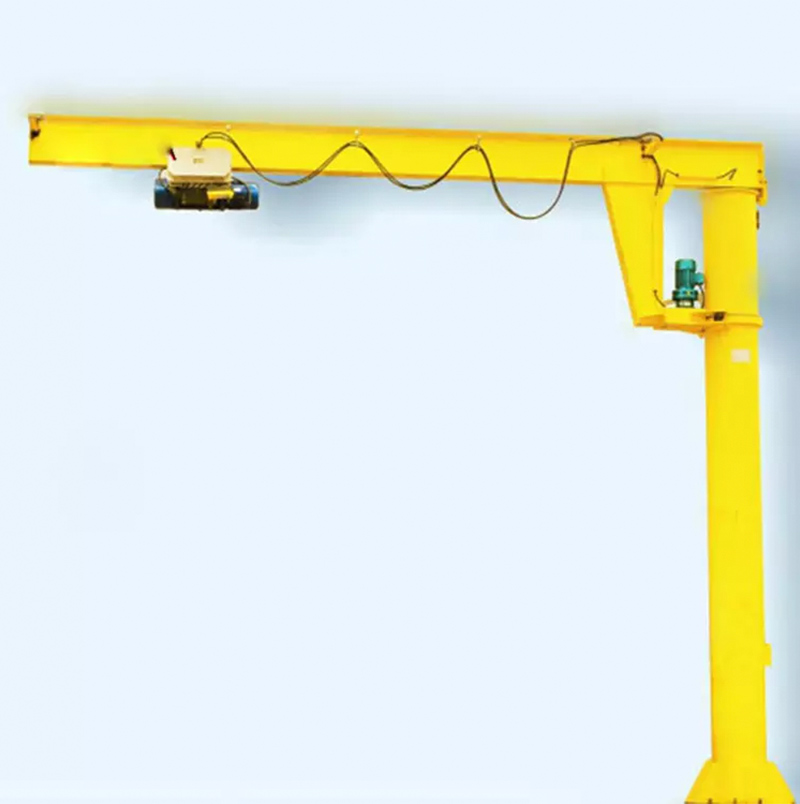

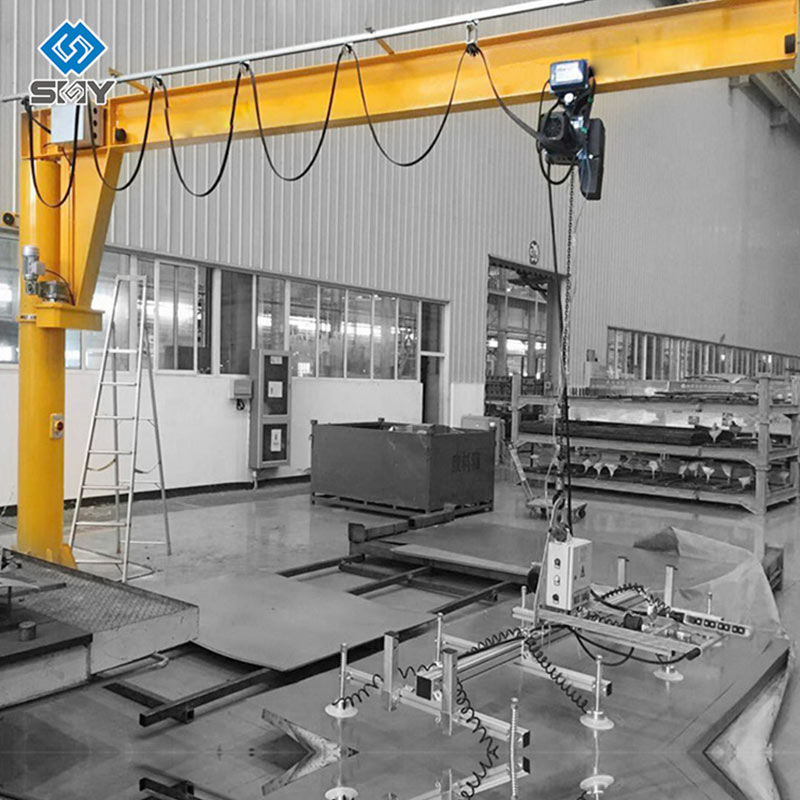

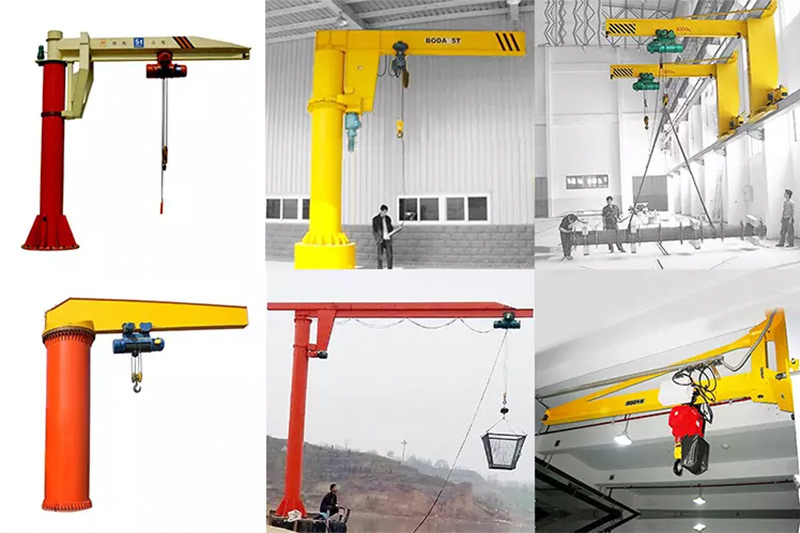

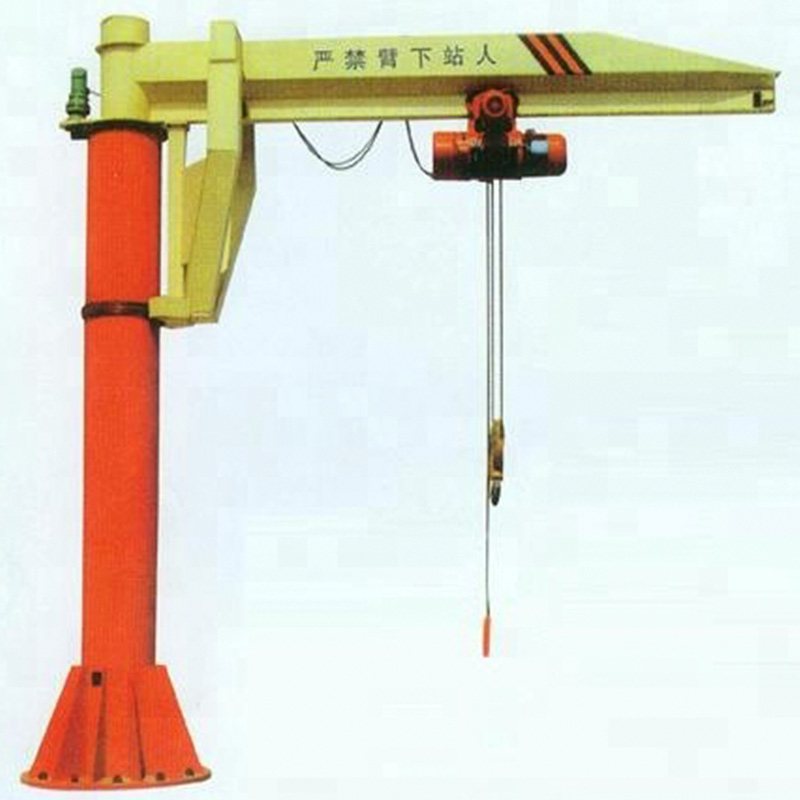

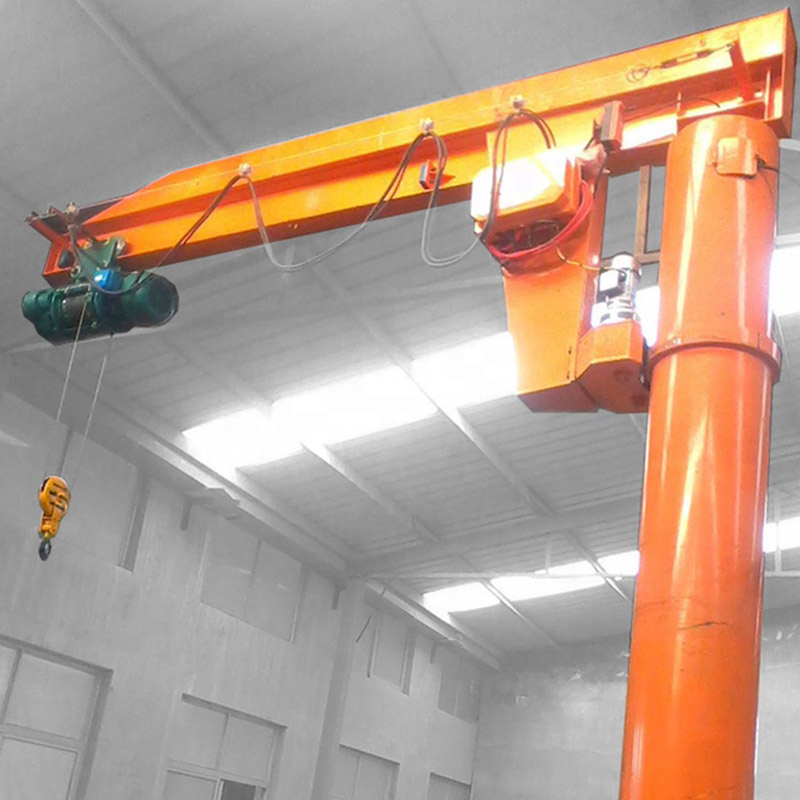

Column Slewing Mounted Jib Crane can be handled easily by one man and have been thoroughly proven in factories, steel mills, muclear and other power stations, ship yards, stockyards, on dredgers, aboard ships, in the wood and stone working industry, in marinas and on railway stations.
Column Slewing Mounted Jib Crane can be handled easily by one man and have been thoroughly proven in factories, steel mills, muclear and other power stations, ship yards, stockyards, on dredgers, aboard ships, in the wood and stone working industry, in marinas and on railway stations.
1. Capacities from 250 kgs to 5 Ton
2. Standard span upto 20 feet
3. 360 degree rotation

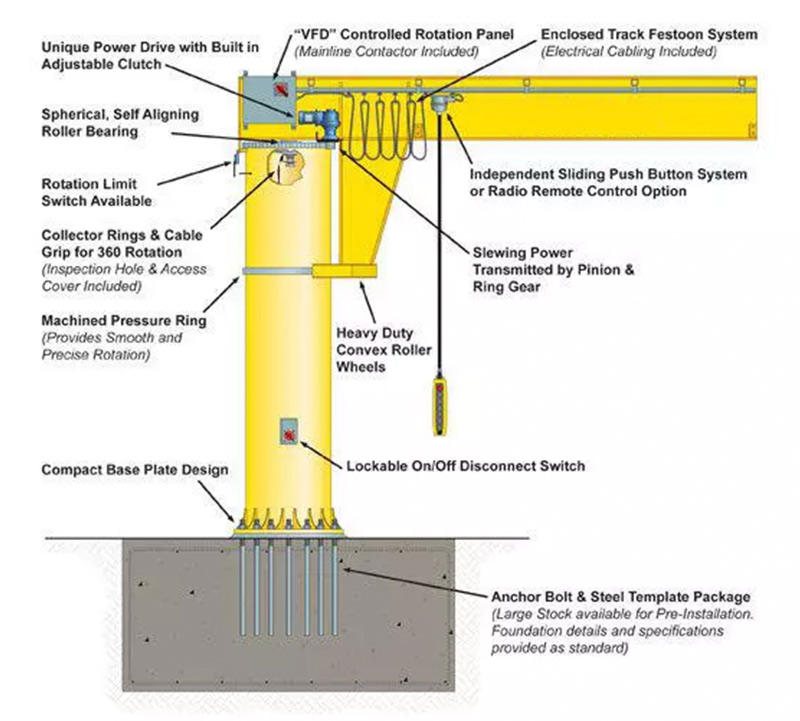

4. Designed for permanent concrete foundation
5. Base plates assembly is secured by means of anchor bolts to a prescribed reinforced concrete foundation, with the number of anchor bolts varying with the capacity of the tadano crane.
6. The pipe or colomn is designed to give maximum strength and minimum deflection to resist bending, buckling and crushing
7. The top bearing assembly utilizes a tapered roller bearing provided with grease fitting for proper lubrication.
| Type | Lifting Weight(t) | Max. R (mm) | Mix. R (mm) | Lifting Height(mm) |
| ZB-D0.25-D/S | 0.25 | 5,000 | 1,000 | 4,000 |
| ZB-D0.5-D/S | 0.5 | 5,000 | 1,000 | 4,000 |
| ZB-D1-D/S | 1 | 5,000 | 1,000 | 4,000 |
| ZB-D2-D/S | 2 | 3,300 | 1,300 | 3,000 |
| ZB-D2-D/S | 2 | 5,000 | 1,300 | 4,000 |
| ZB-D2-D/S | 2 | 6,000 | 1,500 | 3,500 |
| ZB-D3-D/S | 3 | 5,000 | 1,500 | 3,500 |
| ZB-D5-D/S | 5 | 4,000 | 1,800 | 3,000 |
Column Slewing Mounted Jib Crane can be handled easily by one man and have been thoroughly proven in factories, steel mills, muclear and other power stations, ship yards, stockyards, on dredgers, aboard ships, in the wood and stone working industry, in marinas and on railway stations.
1. Capacities from 250 kgs to 5 Ton
2. Standard span upto 20 feet
3. 360 degree rotation
4. Designed for permanent concrete foundation
5. Base plates assembly is secured by means of anchor bolts to a prescribed reinforced concrete foundation, with the number of anchor bolts varying with the capacity of the tadano crane.
6. The pipe or colomn is designed to give maximum strength and minimum deflection to resist bending, buckling and crushing
7. The top bearing assembly utilizes a tapered roller bearing provided with grease fitting for proper lubrication.
