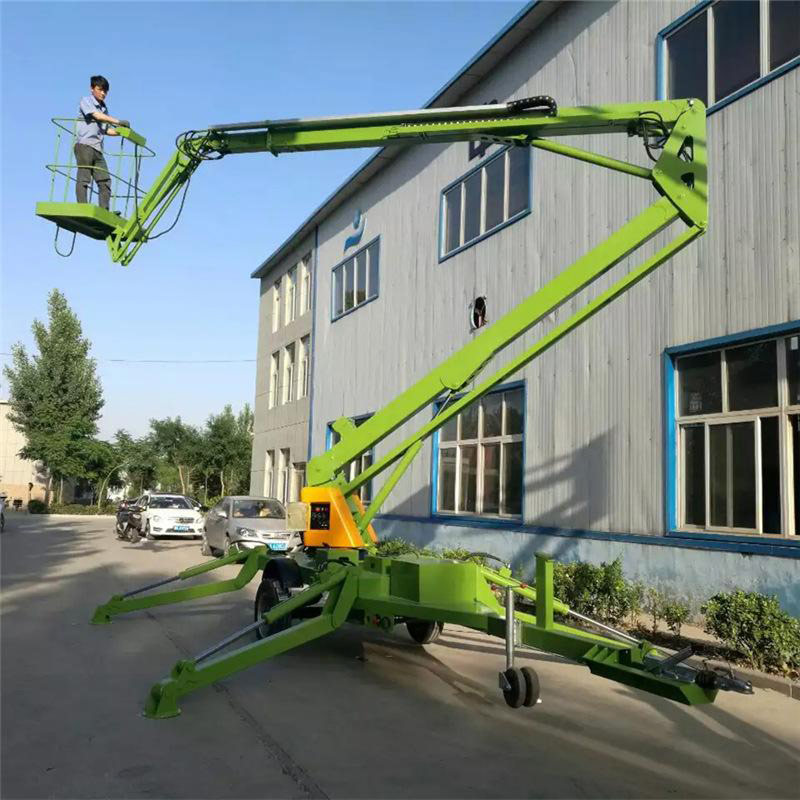

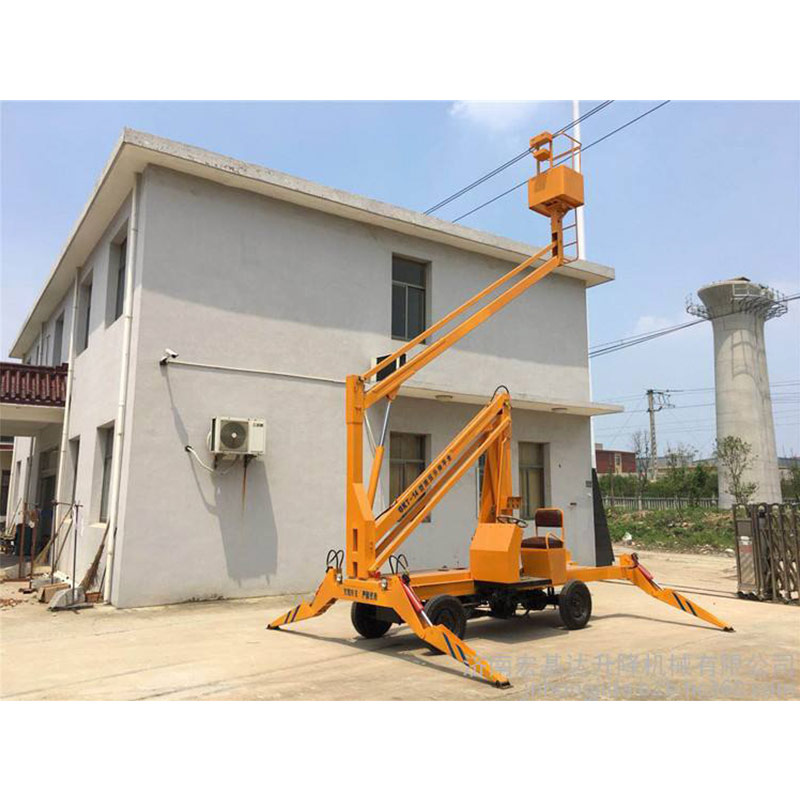

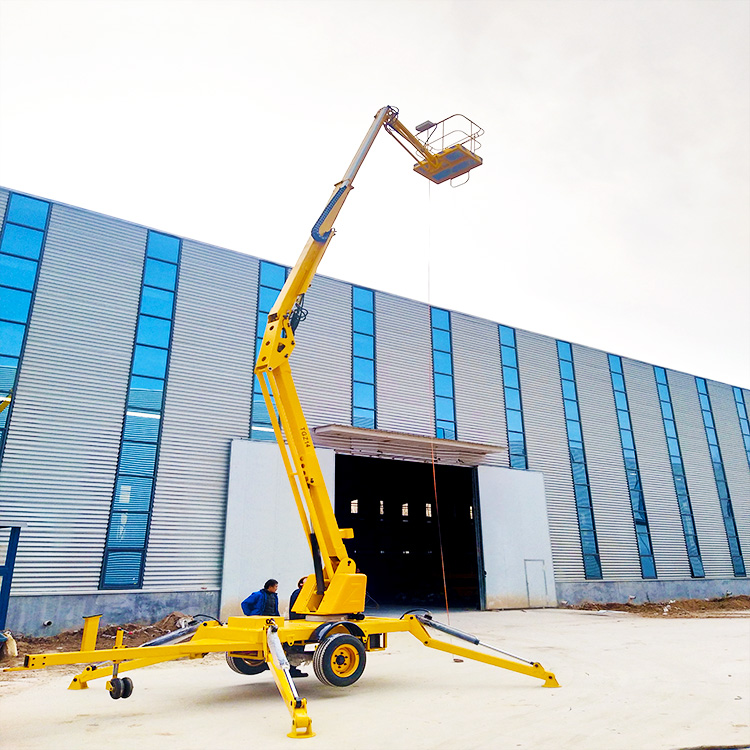

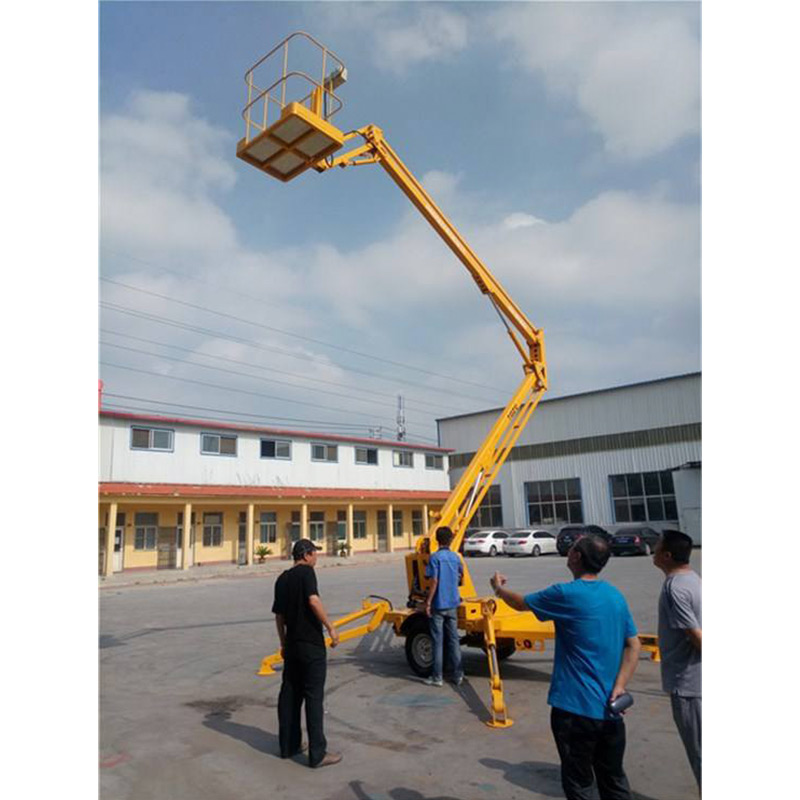

The trailer mounted boom lifting platform is made of pick steel and has the characteristics of precision and sensitivity. It can cross obstacles, has a fast erection speed, and automatically supports hydraulic feet; it can adjust the height of each foot according to the terrain to achieve a level state of the platform; it can cross certain obstacles to achieve work. The trailer type is easy to transport and can be towed directly and quickly.
The trailer mounted boom lifting platform is widely used in installation, maintenance and climbing operations in municipal, electric power, street lamps, advertising, communications, photography, gardening, transportation, docks, airports, ports, large industrial and mining enterprises and other industries. It is suitable for various rugged terrains in the wild and has a wide range of space operations. It is mainly used for construction machinery and equipment for construction, bridge construction, shipbuilding, airports, mines, port terminals, communication and power facilities, and outdoor advertising.
The trailer mounted boom lifting platform height is 8-20m. The working platform size is 1.2*0.8m, height is 1.1m and the loading capacity is 200kg. Power is AC,DC, diesel or both. The lift arm uses a new type of high-quality steel, high strength, lightweight, direct access to AC power to start, it can quickly set up safe and simple operation. The working table has a large working radius and it can be 360 degrees rotated.
1. Overload protection: Hydraulic unit with overload protection device. If overload, the hydraulic station automatically relief pressure and stop running.
2. Emergency Stop: The lift can be stopped immediately in case of any emergency.
3. Emergency Lowering: The platform can be lowered down manually in case of power failure.
4. Explosion-proof valve: The hydraulic system is equipped with explosion-proof valves, which can prevent the sudden drop of the platform if the oil pipe breaks.
5. Safe sensor: When the platform declines, if it touches anything, it will be stopped, so it can protect goods or operators.
| Model | TGZ08 | TGZ10 | TGZ12 | TGZ14 | TGZ16 | TGZ18 | TGZ20 |
| Maximum Working Height | 10m | 12m | 14m | 16m | 18m | 20m | 22m |
| Maximum Platform Height | 08m | 10m | 12m | 14m | 16m | 18m | 20m |
| Maximum Load | 200kg | 200kg | 200kg | 200kg | 200kg | 200kg | 200kg |
| Maximum Working Distance | 4.5m | 5.7m | 6.4m | 8.5m | 9.5m | 10.9m | 12.5m |
| Platform Size (Length x Width x Height) | 1.2X0.8X1.1m | 1.2X0.8X1.1m | 1.2X0.8X1.1m | 1.2X0.8X1.1m | 1.2X0.8X1.1m | 1.2X0.8X1.1m | 1.2X0.8X1.1m |
| Outrigger Span (Vertical x Horizontal) | 3.4 X 3.2m | 3.7X3.45m | 3.7X3.45m | 3.97X4.18m | 4.2 X 4.3m | 4.94X4.76m | 5.14X4.76m |
| Turntable Rotation Angle (Continuous) | 360° | 360° | 360° | 360° | 360° | 360° | 360° |
| Platform Rotation Angle | 160° | 160° | 160° | 160° | 160° | 160° | 160° |
| Tire | 185/75R14C | 185/75R14C | 185/75R14C | 215/75R16C | 215/75R16C | 245/75R16C | 245/75R16C |
| Gross Weight | 1538kg | 1600kg | 1800kg | 2350kg | 2900kg | 4300kg | 4450kg |
