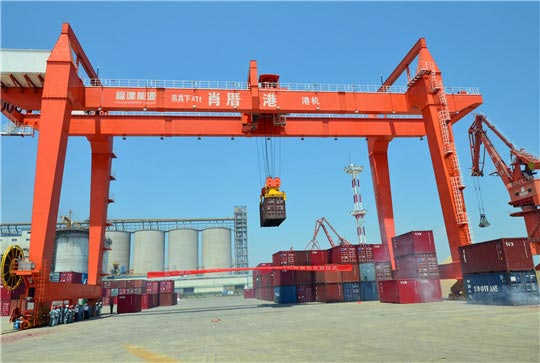

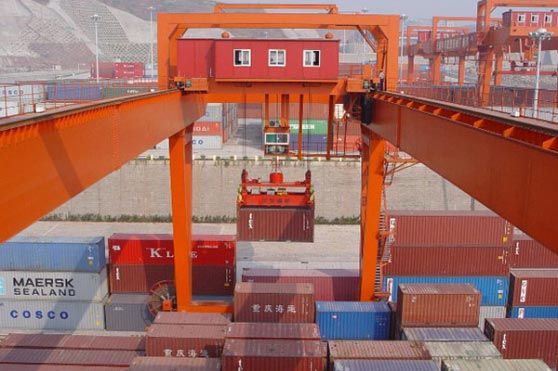

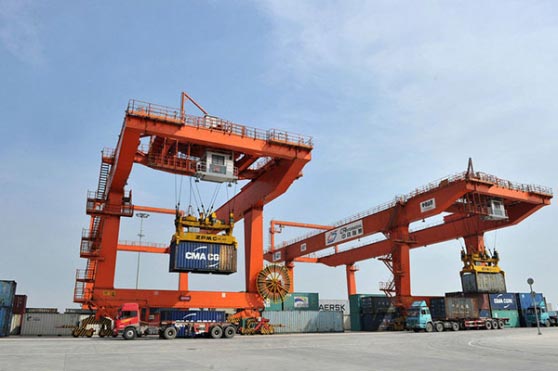

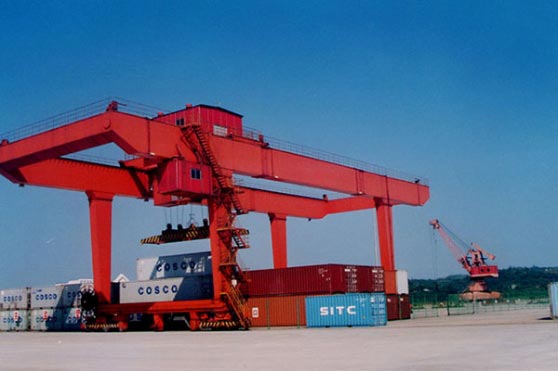

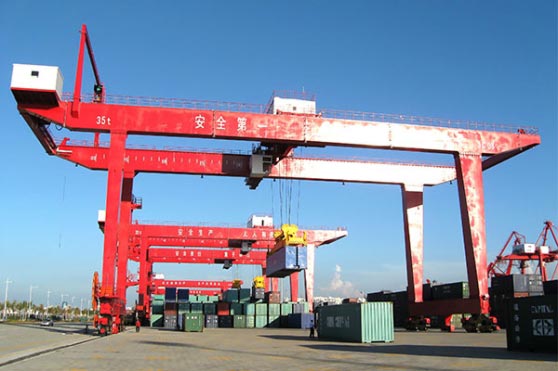

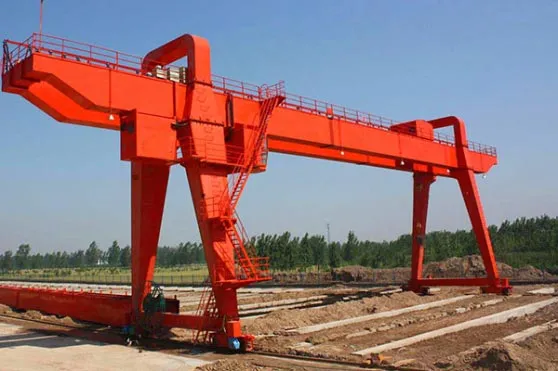

Rail mounted container gantry crane is applicable to move, load and unload containers in rail station good yards, port, outside stores, etc. This type cranes use U frame, the clear space is bigger for containers move to sides. The whole crane moves on the rails mounted in ground, more fast, more steady. Power supply is cable drum. The whole work duty is A6 and we can design non-standard according to your requirement!
Ambient temperature conditions:
1. the power of crane is three-phase AC; rated frequency is 50HZ, rated voltage is 380V;
2. the temperature of working environment is -25~+40 centigrade
3. the relative humidity is no more than 50% when the temperature is +40 centigrade
if the requirements are more than the above mentioned , we could specially design for you
Rail Mounted Container Gantry Crane
| Lifting capacity (under spreader) |
t |
35 |
| Span |
m |
30 |
| Lifting height |
m |
16 |
| Working system |
A6 (intermediate) |
| Load and unload of goods |
20' ,40' container |
| Speed |
Hoisting |
m/min |
0~10 |
| Crab travelling |
3.4~34 |
| Trolley travelling |
2.9~29 |
| Motor |
Hoisting |
Type /kw |
YZP280M-8/2*55 |
| Crab travelling |
YZP180M-8/2*11 |
| Trolley travelling |
YZP160M-6/4*11 |
| Weight |
Crab |
t |
34 |
| Total weight |
215 |
| Max. wheel pressure |
KN |
295 |
| Steel track recommended |
P43 |
| |
3-phase A.C. 50HZ 380V |
Upper Rail Mounted Container Gantry Crane
| Rated loading capacity (under spreader) |
t |
40.5 |
| Span |
m |
22±8 |
| Lifting height |
12.3 |
| Duty |
A7 |
| Trolley rotation |
270 degree |
| Container |
20' 40' 45' |
| Speed |
Hoist |
m/min |
10/18 (full load/no load) |
| Trolley |
40 |
| Gantry |
45 |
| Rotation |
r/min |
1.35 |
| Limited dimension |
L1 |
mm |
14500 |
| L2 |
1550 |
| S1 |
9000 |
| S2 |
7500 |
| Main dimension |
H |
mm |
23500 |
| H1 |
12300 |
| H2 |
800 |
| B |
16500 |
| W |
10500 |
| K |
8500 |
| Max. wheel pressure |
KN |
280 |
| Total power |
KW |
260 |
| Crane rail recommended |
QU70 |
| Power supply |
3-phase A.C, 50HZ 380V |
1. Weight overload protection device.
2. Top quality long time bearing polyurethane materials buffer.
3. Crane travelling limit switch.
4. Voltage lower protection function.
5. Emergency stop system.
6. Current overload protection system and so on!
